Create Wallet Pass Campaigns

A Wallet Pass Campaign lets you design a single Apple Wallet or Google Wallet pass template, issue it to multiple users, and centrally manage updates.

You choose which fields are Shared (syncing changes to all user devices simultaneously) and which are Personal (preserving unique values like names, barcodes, or balances for each user).

Note

A Wallet Pass Campaign is unrelated to a Customer Journey campaign or a push notification. It is a tool for managing pass templates, issuance, and real-time pass updates.

What you can do with Wallet Pass Campaigns

• Design one pass in a campaign, instead of setting up each pass by hand in the Apple Wallet or Google Wallet pass builder.
• Choose which fields update everywhere (shared) and which stay per pass (personal).
• See how many issued passes a field edit affects before you save it.
• Override a shared field on one pass, then hand control back to the campaign later.
• Attach passes issued outside a campaign so they start following its shared fields.
• Track campaign revisions and the delivery status of each update.
• Automatically refresh a pass whenever the tag behind one of its fields changes, without editing the campaign.

Prerequisites

A campaign uses the same one-time setup as a standalone pass:

Apple Wallet:

• Active Apple Developer Program membership
• iOS platform connected to the application
• Pass signing certificate uploaded to Pushwoosh

Google Wallet:

• Active Google Pay & Wallet Console issuer account
• Google Wallet configured for the application (Issuer ID and Google Cloud service account key)

Create a campaign

To start creating a campaign, go to Campaigns → Wallet Passes → Campaigns and click Create campaign.

Set campaign details and platform

• Platform: select Apple Wallet or Google Wallet at the top of the page. This choice is permanent for the campaign.
• Campaign: enter a Name and an optional Description for your internal reference. Neither appears on the pass.
• Pass format: under Pass Style (Apple) or Pass Type (Google), choose the layout for your pass:
  • Apple Wallet: Boarding Pass, Coupon, Event Ticket, Store Card, Generic. See Choose a pass style.
  • Google Wallet: Generic, Offer, Loyalty card, Event ticket, Gift card, Flight, Transit. This cannot be changed after creation. See Choose a pass type.

Configure pass design and branding

Configure the standard sections of the pass:

• Basic Information, Colors, and Barcode: set the pass title, background and text colors, and barcode type. For detailed guidance on each section, see Design passes in the Apple Wallet pass builder or Design Google Wallet passes in the pass builder.
• Pass fields: add the fields that should appear on the card (see Apple Wallet pass fields or Google Wallet fields and details).
• Expiration: set relevant dates and expiration rules (see Apple Wallet expiration or Google Wallet expiration).
• Locations: set location-based relevance (see Apple Wallet locations or Google Wallet locations).

Tip

For Google Wallet, use Who can save the pass to control whether the pass is tied to a single Google account, a single device, or accessible to anyone with the link.

Set shared and personal fields

In the Shared and personal fields section, configure which fields update globally across all passes and which keep unique values per user. This controls what happens when you edit the campaign later: shared fields update on every issued pass, while personal fields remain unchanged.

Turn on the Personal toggle for any field that should hold unique values per user.

Field type	Behavior	Examples
Shared	Driven by the campaign. Updating this field syncs the new value to every pass on users’ devices.	Event date, Gate number, Store address, Discount percentage
Personal	Unique per user. The campaign does not overwrite these values when updated.	User name, Seat number, Membership ID, Points balance

A personal field’s value can include a tag placeholder, {tag} or {tag|format|fallback} (for example, {Seat}). Pushwoosh fills it in from the recipient’s tag when it serves the pass. If the recipient has no value for that tag, Pushwoosh uses the fallback from the placeholder, or leaves the field blank when the placeholder has none.

• Just the tag, nothing else, like {Seat}: the field doesn’t appear in the Issue pass dialog.
• The tag mixed with other text, like Seat {Seat}, or no tag at all: the field appears as an editable input in the Issue pass dialog, prefilled with that value. Any tag inside it still resolves per recipient when Pushwoosh serves the pass.

Tip

A pass’s barcode is configured and personalized in the Barcode section. See Apple Wallet barcode or Google Wallet barcode for details.

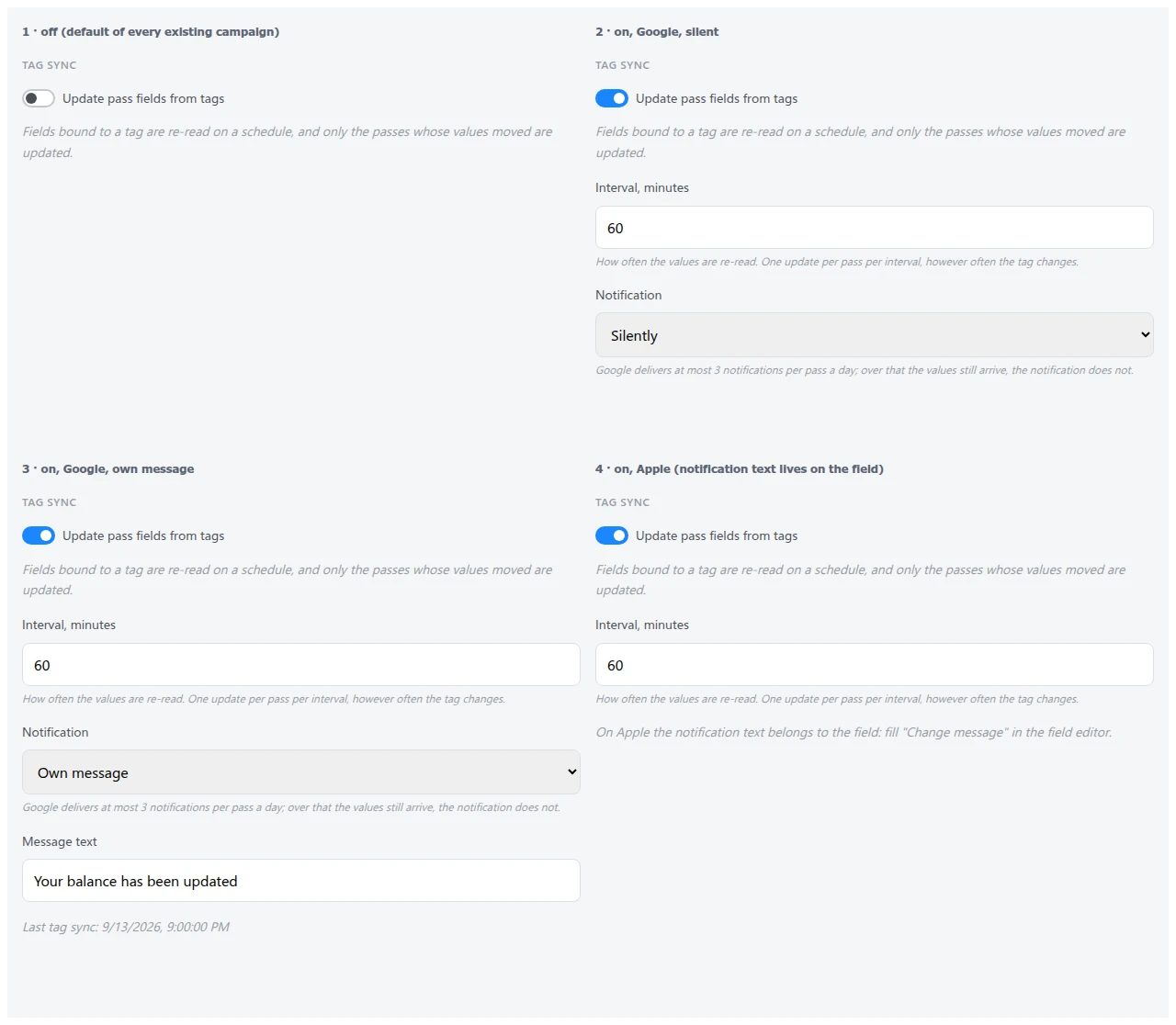

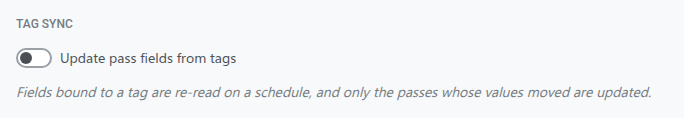

Turn on tag sync

In the Tag sync section, turn on Update pass fields from tags to have Pushwoosh periodically re-check the tag placeholders used in the campaign’s fields and push a fresh value to any pass whose tag changed.

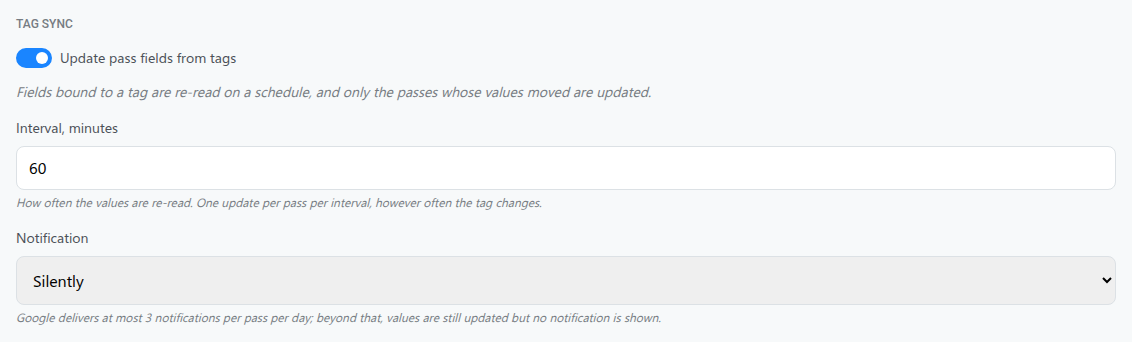

• Interval (minutes): how often Pushwoosh re-reads the tags. Defaults to 60 and can’t go below 5. A pass gets at most one refresh per interval, no matter how many times its tag changes in between.

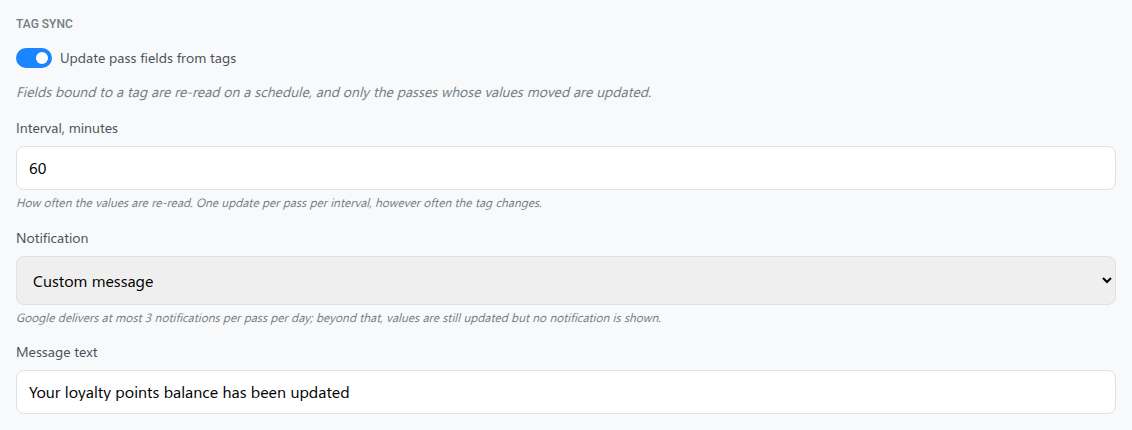

• Notification (Google Wallet only): choose how the holder learns about the refresh: Silently, Own message (fill Message text, sent with the update), or Google field notification (Google’s own field-update alert). Google caps them at 3 per pass per 24 hours. Past that, the new values still reach the pass, just without a notification.

Note

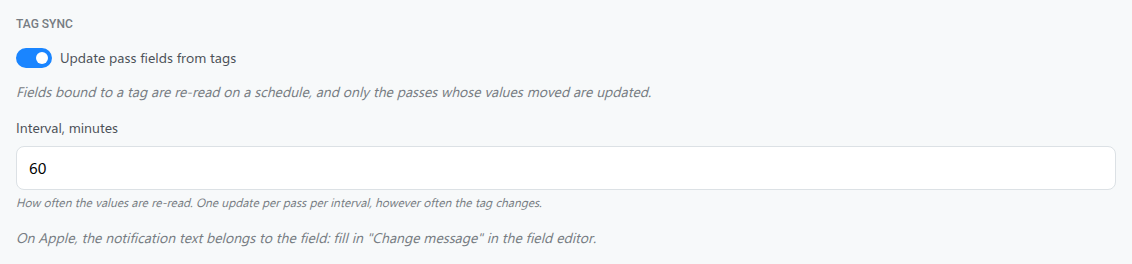

Apple Wallet has no campaign-wide notification, so this picker doesn’t appear for Apple campaigns. The notification text lives on the field itself. Fill Change message on each field in the Apple Wallet pass builder.

Caution

Tag sync only runs while the campaign’s status is Active. Set it to Draft or Archived to pause scheduled checks without turning the toggle off.

Turning tag sync on for a campaign that already has issued passes doesn’t wait out the first interval. The next scheduled check treats a campaign that has never synced as due right away, and in Own message or Google field notification mode this can notify every holder at once and spend the pass’s 3-per-24-hour cap in a single run.

Upload campaign images

1. In the Campaign images section, click Choose an image next to an image slot.
2. Select an existing image from your Media store or drag and drop a new file to upload.
3. Repeat for each available image slot:
   • Apple Wallet: Icon, Logo, Background, Footer, Strip, and Thumbnail (see Apple Wallet images).
   • Google Wallet: Logo and Hero image.

Note

• Images must be under 10 MB and 25 megapixels.
• Apple Wallet: unlike a standalone pass, where images are locked after creation, a campaign image update reaches every issued pass.
• Google Wallet: a standalone pass already lets you change its logo and hero image anytime via Edit. A campaign image works the same way, except one edit reaches every issued pass at once instead of just one.

Preview and create the campaign

1. Check the Preview as user panel on the right to see how the card looks. You can enter a test User ID to preview personalized fields.

Tip

Click Validate pass to check the design against Apple’s or Google’s requirements before saving, without creating the campaign yet.

2. Click Create campaign at the bottom of the page.

Pushwoosh creates the campaign in Draft status and opens its workspace, with Design, Passes, and History tabs.

Note

Creating a campaign only saves the pass design and does not send passes to users. To distribute passes to your audience, proceed to Issue passes to users.

Issue passes to users

Issue a pass from the campaign

1. On the Passes tab, click Issue pass.
2. Enter the recipient’s Pushwoosh User ID.

3. Click Issue pass to confirm.

Depending on how you configured Personal fields, the modal handles them as follows:

• Editable fields: appear with default values that you can change for this user.
• Tag placeholders (like {Seat}): do not appear in the dialog. Pushwoosh automatically populates them from the user’s tags.

You can also edit any personal field on an individual pass at any time after issuance.

Pushwoosh generates the pass from the campaign’s current design and lists it on the Passes tab and in the application’s All passes table (Apple Wallet or Google Wallet).

Deliver the pass to the recipient

Issuing a pass creates the pass record in Pushwoosh. To deliver it to the user’s device, share the installation link:

1. Open the pass’s actions menu on the Passes tab or in All passes.
2. Select Copy install link or QR code. Apple Wallet passes also offer Download for the signed .pkpass file.
3. Send the link or file to the recipient via push, email, SMS, or a Customer Journey. To issue a pass and deliver its link automatically as travelers move through a journey, use the Issue Wallet Pass element instead of issuing it here.

For more ways to distribute passes, see Share Apple Wallet passes or Share Google Wallet passes.

Attach an existing pass to a campaign

You can attach standalone passes (created outside any campaign) to a campaign so they start receiving shared updates.

1. On the Passes tab, click Attach passes.
2. Search for passes by User ID, serial number, or barcode.
3. Select the passes and confirm.

Once attached:

• Shared fields start following the campaign and update whenever you change the pass template.
• Personal values already on the pass (such as user details or unique balances) are preserved.

Attach passes via API

You can also attach passes programmatically using the AttachPasses API method (up to 500 serial numbers per request).

If a pass cannot be attached, the API returns the specific reason for that serial:

• The pass is already assigned to another campaign.
• The pass style does not match the campaign’s format.
• The pass is missing required campaign fields.
• The serial number does not exist or belongs to a different platform.

Manage an existing campaign

Opening a created campaign from Campaigns → Wallet Passes → Campaigns displays its status, revision counter, live pass preview, and three main tabs: Design, Passes, and History.

Change the campaign status

Use status to track where each campaign stands: still being designed, actively issuing passes, or done and archived.

To change the status, select an option from the Status dropdown in the campaign header. The change saves immediately without a separate confirmation step:

• Draft or Active: allows you to issue new passes, attach existing ones, and push design updates.
• Archived: pauses new pass issuance. You cannot issue or attach passes while the campaign is archived, but previously issued passes continue working and receiving shared updates.

Design tab

On the Design tab, you can update the pass template, change colors, modify shared and personal fields, upload new campaign images, or change tag sync settings.

Update design and push changes to passes

1. On the Design tab, edit basic information, colors, barcode type, expiration, locations, a shared field, or a campaign image.
2. Click Save changes.
3. In the Apply the campaign edit dialog, confirm the update:
   • No pass overrides the changed field: click Update N, keep hand edits to push the edit to all N passes.
   • Some passes override the changed field: the dialog names the field and how many passes override it. Click Update N, keep hand edits to push the edit to every pass except those, or Overwrite all N to push it to all N passes, including the overridden ones. Overwriting erases the override.

Whichever button you click, the update saves as a new revision (for example, Revision 2), so you can check what changed and when on the History tab.

Note

An edit made when no passes are issued yet saves immediately without a confirmation dialog, because there are no existing passes to update.

Override a shared field on an individual pass

If you need to customize a shared field for a specific user, edit that field directly on their individual pass (from the Passes tab or All passes):

• Create an override: saving a custom value on an individual pass detaches that field from campaign-wide updates. Future updates to the campaign, including a scheduled tag sync refresh, will skip this pass for that specific field.
• Remove an override: to restore campaign control, edit the pass and click Use the campaign value next to the overridden field.

You can track which passes have customized values on the Passes tab under the Pinned fields column.

Passes tab

The Passes tab lists every pass issued by the campaign, including its serial number, recipient User ID, active pinned fields, current revision, and last update date.

If tag sync is on, the tab also shows a Tags synced line above the table with the date and time of the last scheduled run, or not yet before the first one.

Use table filters to find specific passes:

• With pinned fields: shows passes that have at least one custom-edited field.
• Behind the revision: shows passes that have not yet received the latest campaign update.

To issue new passes or attach existing ones, see Issue passes to users.

Open a row’s actions menu (⋮) to manage that pass:

• Edit: open the pass on its platform’s edit page to change personal fields or override a shared one.
• Download: on Apple Wallet campaigns, download the signed .pkpass file. Google Wallet campaigns don’t show this option, since Google Wallet has no downloadable file equivalent.
• Send message: open the one-time push composer to message the pass’s recipient by User ID. See Message Wallet pass holders for all the ways to reach them.
• QR code: show an install QR code users can scan to add the pass and register their device for updates.
• Copy install link: copy the install URL to share the pass in your messaging channels.
• Delete: remove the pass. This can’t be undone. On Apple Wallet, already-installed copies stop receiving updates and become invalid on their next refresh. On Google Wallet, Google doesn’t allow force-removing a pass already saved on a device, so it becomes invalid and moves to the user’s Expired passes while Pushwoosh removes its record. Deleting a pass here doesn’t delete the campaign or any other issued pass.

History tab

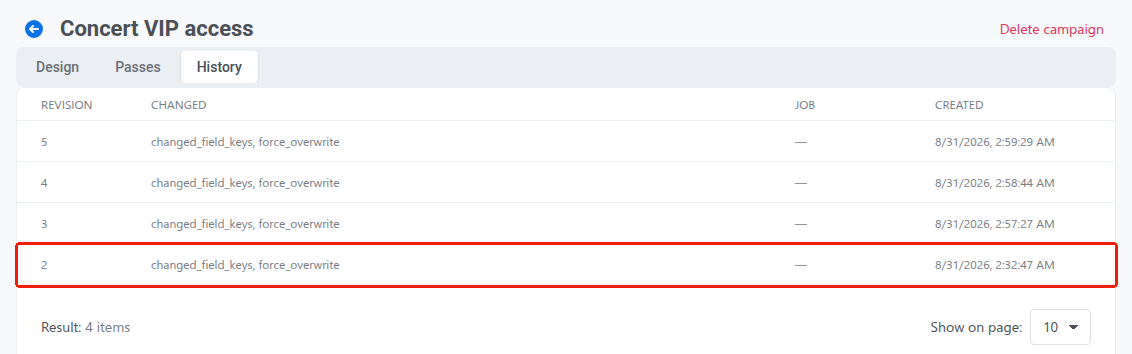

The History tab lists all revisions of the campaign in chronological order, showing which fields were modified in each version.

The delivery status of the most recent update appears below the tabs:

• Cancel: stops sending the update to passes it has not reached yet. These passes remain on their previous revision.
• Retry failed: re-attempts delivery for passes that failed to update (marked as failed after 5 attempts).

Once a new revision is saved, older updates can no longer be retried or canceled.

Delete a campaign

Open the campaign and click Delete campaign at the top right of the page.

Deleting a campaign does not delete or invalidate already issued passes. Issued passes retain their current content and images, but stop receiving shared updates. Any future changes must be made on each pass individually.
