iOS SDK basic integration guide

This section contains information on how to integrate the Pushwoosh SDK into your iOS application.

Prerequisites

To integrate the Pushwoosh iOS SDK into your app, you will need the following:

Integration steps

1. Installation

You can integrate the Pushwoosh SDK into your application using either Swift Package Manager or CocoaPods.

Swift Package Manager

In the Package Dependencies section, add the following package:

https://github.com/Pushwoosh/Pushwoosh-XCFramework

Starting from Pushwoosh iOS SDK version 6.8.0+, Pushwoosh is modularized into several components: PushwooshFramework, PushwooshCore, PushwooshBridge, and PushwooshLiveActivities. These modules interact with each other, so when adding the SDK via Swift Package Manager, make sure that all four dependencies are added to your app target, as shown in the screenshot below.

CocoaPods

Open your Podfile and add the dependency:

pod 'PushwooshXCFramework'

Then, in the terminal, run the following command to install dependencies:

pod install

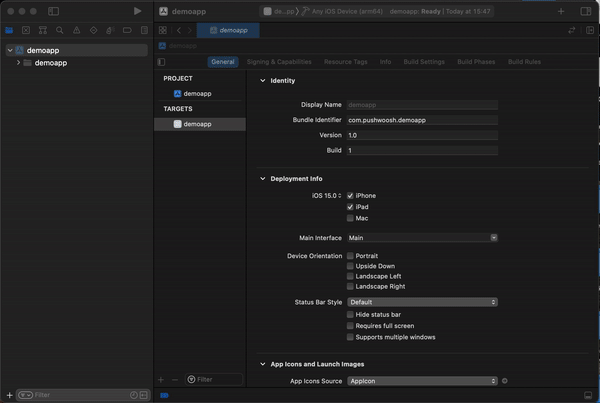

2. Capabilities

To enable Push Notifications in your project, you need to add certain capabilities.

In the Signing & Capabilities section, add the following capabilities:

Push Notifications
Background Modes. After adding this capability, check the box for Remote notifications.

If you intend to use Time Sensitive Notifications (iOS 15+), also add the Time Sensitive Notifications capability.

3. Initialization code

AppDelegate

Add the following code to your AppDelegate class:

import SwiftUI
import PushwooshFramework

@main
struct MyApp: App {
    // Register AppDelegate as UIApplicationDelegate
    @UIApplicationDelegateAdaptor(AppDelegate.self) var appDelegate

    var body: some Scene {
        WindowGroup {
            ContentView()
        }
    }
}

class AppDelegate: NSObject, UIApplicationDelegate, PWMessagingDelegate {

    func application(_ application: UIApplication, didFinishLaunchingWithOptions launchOptions: [UIApplication.LaunchOptionsKey: Any]?) -> Bool {
        // Initialization code
        // Set custom delegate for push handling
        Pushwoosh.sharedInstance().delegate = self

        // Register for push notifications
        Pushwoosh.sharedInstance().registerForPushNotifications()

        return true
    }

    // Handle token received from APNS
    func application(_ application: UIApplication, didRegisterForRemoteNotificationsWithDeviceToken deviceToken: Data) {
        Pushwoosh.sharedInstance().handlePushRegistration(deviceToken)
    }

    // Handle token receiving error
    func application(_ application: UIApplication, didFailToRegisterForRemoteNotificationsWithError error: Error) {
        Pushwoosh.sharedInstance().handlePushRegistrationFailure(error)
    }

    //for silent push notifications
    func application(_ application: UIApplication, didReceiveRemoteNotification userInfo: [AnyHashable: Any], fetchCompletionHandler completionHandler: @escaping (UIBackgroundFetchResult) -> Void) {
        Pushwoosh.sharedInstance().handlePushReceived(userInfo)
        completionHandler(.noData)
    }

    // Fired when a push is received
    func pushwoosh(_ pushwoosh: Pushwoosh, onMessageReceived message: PWMessage) {
        print("onMessageReceived: ", message.payload!.description)
    }

    // Fired when a user taps the notification
    func pushwoosh(_ pushwoosh: Pushwoosh, onMessageOpened message: PWMessage) {
        print("onMessageOpened: ", message.payload!.description)
    }
}

struct ContentView: View {
    var body: some View {
        Text("Pushwoosh with SwiftUI")
            .padding()
    }
}

import PushwooshFramework

@UIApplicationMain
class AppDelegate: UIResponder, UIApplicationDelegate, PWMessagingDelegate {

    var window: UIWindow?

    func application(_ application: UIApplication, didFinishLaunchingWithOptions launchOptions: [UIApplication.LaunchOptionsKey: Any]?) -> Bool {
        //initialization code
        //set custom delegate for push handling, in our case AppDelegate
        Pushwoosh.sharedInstance().delegate = self;

        //register for push notifications
        Pushwoosh.sharedInstance().registerForPushNotifications()

        return true
    }

    //handle token received from APNS
    func application(_ application: UIApplication, didRegisterForRemoteNotificationsWithDeviceToken deviceToken: Data) {
        Pushwoosh.sharedInstance().handlePushRegistration(deviceToken)
    }

    //handle token receiving error
    func application(_ application: UIApplication, didFailToRegisterForRemoteNotificationsWithError error: Error) {
        Pushwoosh.sharedInstance().handlePushRegistrationFailure(error);
    }

    //for silent push notifications
    func application(_ application: UIApplication, didReceiveRemoteNotification userInfo: [AnyHashable : Any], fetchCompletionHandler completionHandler: @escaping (UIBackgroundFetchResult) -> Void) {
        Pushwoosh.sharedInstance().handlePushReceived(userInfo)
        completionHandler(.noData)
    }

    //this event is fired when the push gets received
    func pushwoosh(_ pushwoosh: Pushwoosh, onMessageReceived message: PWMessage) {
        print("onMessageReceived: ", message.payload!.description)
    }

    // Fired when a user taps the notification
    func pushwoosh(_ pushwoosh: Pushwoosh, onMessageOpened message: PWMessage) {
        print("onMessageOpened: ", message.payload!.description)
    }
}

#import <PushwooshFramework/PushwooshFramework.h>

@implementation AppDelegate

- (BOOL)application:(UIApplication *)application didFinishLaunchingWithOptions:(NSDictionary *)launchOptions {
  //-----------PUSHWOOSH PART-----------

  // set custom delegate for push handling, in our case AppDelegate
  [Pushwoosh sharedInstance].delegate = self;

  //register for push notifications!
  [[Pushwoosh sharedInstance] registerForPushNotifications];

  return YES;
}

//handle token received from APNS
- (void)application:(UIApplication *)application
  didRegisterForRemoteNotificationsWithDeviceToken:(NSData *)deviceToken {
  [[Pushwoosh sharedInstance] handlePushRegistration:deviceToken];
}

//handle token receiving error
- (void)application:(UIApplication *)application didFailToRegisterForRemoteNotificationsWithError:(NSError *)error {
  [[Pushwoosh sharedInstance] handlePushRegistrationFailure:error];
}

//for silent push notifications
- (void)application:(UIApplication *)application
  didReceiveRemoteNotification:(NSDictionary *)userInfo
      fetchCompletionHandler:(void (^)(UIBackgroundFetchResult))completionHandler {
    [[Pushwoosh sharedInstance] handlePushReceived:userInfo];
    completionHandler(UIBackgroundFetchResultNoData);
}

//this event is fired when the push gets received
- (void)pushwoosh:(Pushwoosh *)pushwoosh onMessageReceived:(PWMessage *)message {
    NSLog(@"onMessageReceived: %@", message.payload);
}

//this event is fired when user taps the notification
- (void)pushwoosh:(Pushwoosh *)pushwoosh onMessageOpened:(PWMessage *)message {
    NSLog(@"onMessageOpened: %@", message.payload);
}

@end

Info.plist

In your Info.plist:

set the Pushwoosh_APPID key to the Pushwoosh Application Code.
set the Pushwoosh_API_TOKEN key to the Pushwoosh Device API Token

4. Message delivery tracking

Pushwoosh supports tracking delivery events for push notifications via the Notification Service Extension

Add Notification Service Extension

In Xcode, Select File > New > Target…
Choose Notification Service Extension and press Next.
Enter the target name and press Finish.
When prompted for activation, press Cancel.

Add Pushwoosh SDK to Notification Service Extension

This code allows you to intercept and process notifications within your notification extension.

Swift
Objective-C

import UserNotifications
import PushwooshFramework

class NotificationService: UNNotificationServiceExtension {

    var contentHandler: ((UNNotificationContent) -> Void)?
    var bestAttemptContent: UNMutableNotificationContent?

    override func didReceive(_ request: UNNotificationRequest, withContentHandler contentHandler: @escaping (UNNotificationContent) -> Void) {
        // Pushwoosh **********
        PWNotificationExtensionManager.shared().handle(request, contentHandler: contentHandler)
        // ********************

        self.contentHandler = contentHandler
        bestAttemptContent = (request.content.mutableCopy() as? UNMutableNotificationContent)

        if let bestAttemptContent = bestAttemptContent {
            // Modify the notification content here...
            bestAttemptContent.title = "\(bestAttemptContent.title) [modified]"

            contentHandler(bestAttemptContent)
        }
    }

    override func serviceExtensionTimeWillExpire() {
        // Called just before the extension will be terminated by the system.
        // Use this as an opportunity to deliver your "best attempt" at modified content, otherwise the original push payload will be used.
        if let contentHandler = contentHandler, let bestAttemptContent =  bestAttemptContent {
            contentHandler(bestAttemptContent)
        }
    }

}

#import "PWNotificationExtensionManager.h"

@interface NotificationService : UNNotificationServiceExtension

@end

@implementation NotificationService

- (void)didReceiveNotificationRequest:(UNNotificationRequest *)request withContentHandler:(void (^)(UNNotificationContent * _Nonnull))contentHandler {
    // Pushwoosh **********
    [[PWNotificationExtensionManager sharedManager] handleNotificationRequest:request contentHandler:contentHandler];
    //*********************
}

@end

App Groups capability

You must enable App Groups capability to allow the Notification Service Extension to communicate with the main app.

For both the main target and the Notification Service Extension:

Go to Signing & Capabilities and add the App Groups capability.
Press + to add a new group.
Ensure the group name starts with group..
Use the same group for both the main target and the Notification Service Extension.

Info.plist

In your main target’s Info.plist, add

PW_APP_GROUPS_NAME — The name of your App Groups group

In your Notification Service Extension’s Info.plist, add:

PW_APP_GROUPS_NAME — The name of your App Groups group
Pushwoosh_APPID - Your Application Code.

5. Run the project

Build and run the project.
Go to the Pushwoosh Control Panel and send a push notification.
You should see the notification in the app.

Extended Pushwoosh iOS integration

At this stage, you have already integrated the SDK and can send and receive push notifications. Now, let’s explore the core functionality

Push notifications

In the Pushwoosh SDK, there are two callbacks designed for handling push notifications:

onMessageReceived: This method is invoked when a push notification is received.
onMessageOpened: This method is called when the user interacts with (opens) the notification

These callbacks enable developers to manage the reception and user interaction with push notifications within their applications

Swift
Objective-C

import PushwooshFramework

class AppDelegate: NSObject, UIApplicationDelegate, PWMessagingDelegate {

    func application(_ application: UIApplication, didFinishLaunchingWithOptions launchOptions: [UIApplication.LaunchOptionsKey : Any]? = nil) -> Bool {
        Pushwoosh.sharedInstance().delegate = self;
    }

    func pushwoosh(_ pushwoosh: Pushwoosh, onMessageOpened message: PWMessage) {
        if let payload = message.payload {
            print("onMessageOpened: \(payload)")
        }
    }

    func pushwoosh(_ pushwoosh: Pushwoosh, onMessageReceived message: PWMessage) {
        if let payload = message.payload {
            print("onMessageReceived: \(payload)")
        }
    }
}

#import <PushwooshFramework/PushwooshFramework.h>

@interface AppDelegate () <PWMessagingDelegate>

@end

@implementation AppDelegate

- (BOOL)application:(UIApplication *)application didFinishLaunchingWithOptions:(NSDictionary *)launchOptions {
    [[Pushwoosh sharedInstance] setDelegate:self];
    return YES;
}

- (void)pushwoosh:(Pushwoosh *)pushwoosh onMessageOpened:(PWMessage *)message {
    if (message.payload) {
        NSLog(@"onMessageOpened: %@", message.payload);
    }
}

- (void)pushwoosh:(Pushwoosh *)pushwoosh onMessageReceived:(PWMessage *)message {
    if (message.payload) {
        NSLog(@"onMessageReceived: %@", message.payload);
    }
}
@end

User configuration

By focusing on individual user behavior and preferences, you can deliver personalized content, leading to increased user satisfaction and loyalty

Swift
Objective-C

import PushwooshFramework

class Registration {

    func afterUserLogin(user: User) {
        let pushwoosh = Pushwoosh.sharedInstance()
        // set user ID
        if let userId = user.userId {
            pushwoosh.setUserId(userId)
        }

        // set user email
        if let userEmail = user.email {
            pushwoosh.setEmail(userEmail)
        }

        // setting additional user information as tags for Pushwoosh
        if let age = user.userDetails.age,
            let name = user.userDetails.userName,
            let lastLogin = user.userDetails.lastLoginDate {
            pushwoosh.setTags([
                "age": age,
                "name": name,
                "last_login": lastLogin
            ])
        }
    }
}

#import <PushwooshFramework/PushwooshFramework.h>

@implementation Registration

- (void)afterUserLogin:(User *)user {
    Pushwoosh *pushwoosh = [Pushwoosh sharedInstance];

    // set user ID
    if (user.userId) {
        [pushwoosh setUserId:user.userId];
    }

    // set user email
    if (user.email) {
        [pushwoosh setEmail:user.email];
    }

    // setting additional user information as tags for Pushwoosh
    if (user.userDetails.age && user.userDetails.userName && user.userDetails.lastLoginDate) {
        NSDictionary *tags = @{
            @"age": user.userDetails.age,
            @"name": user.userDetails.userName,
            @"last_login": user.userDetails.lastLoginDate
        };
        [pushwoosh setTags:tags];
    }
}

@end

Events

Events are specific user actions or occurrences within the app that can be tracked to analyze behavior and trigger corresponding messages or actions

Swift
Objective-C

import PushwooshFramework

class Registration {

    func afterUserLogin(user: User) {
        if let userName = user.getUserName(), let lastLogin = user.getLastLoginDate() {
            PWInAppManager.shared().postEvent("login", withAttributes: [
                "name": userName,
                "last_login": lastLogin
            ])
        }
    }

    func afterUserPurchase(user: User, product: Product) {
        let pushwoosh = Pushwoosh.sharedInstance()

        // Track purchase event
        PWInAppManager.shared().postEvent("purchase", withAttributes: [
            "product_id": product.getId(),
            "product_name": product.getName(),
            "price": product.getPrice(),
            "quantity": product.getQuantity()
        ])

        // Set user tags
        let lastPurchaseDate = Date().timeIntervalSince1970
        let lifetimeSpend = getCurrentLifetimeSpend() + product.getPrice()

        pushwoosh.setTags([
            "last_purchase_date": lastPurchaseDate,
            "lifetime_spend": lifetimeSpend
        ])
    }
}

#import <PushwooshFramework/PushwooshFramework.h>
#import <PushwooshFramework/PWInAppManager.h>

@implementation Registration

- (void)afterUserLogin:(User *)user {
    NSString *userName = [user getUserName];
    NSDate *lastLogin = [user getLastLoginDate];

    if (userName && lastLogin) {
        [[PWInAppManager sharedManager] postEvent:@"login" withAttributes:@{
            @"name": userName,
            @"last_login": lastLogin
        }];
    }
}

- (void)afterUserPurchase:(User *)user product:(Product *)product {
    Pushwoosh *pushwoosh = [Pushwoosh sharedInstance];

    // Track purchase event
    [[PWInAppManager sharedManager] postEvent:@"purchase" withAttributes:@{
        @"product_id": [product getId],
        @"product_name": [product getName],
        @"price": @([product getPrice]),
        @"quantity": @([product getQuantity])
    }];

    // Set user tags
    NSTimeInterval lastPurchaseDate = [[NSDate date] timeIntervalSince1970];
    double lifetimeSpend = /* fetch current lifetime spend */ + [product getPrice];

    NSDictionary *tags = @{
        @"last_purchase_date": @(lastPurchaseDate),
        @"lifetime_spend": @(lifetimeSpend)
    };

    [pushwoosh setTags:tags];
}

@end

Rich Media

Rich media refers to interactive and multimedia content, such as images, videos, or HTML, used in notifications and in-app messages to enhance user engagement

Swift
Objective-C

import PushwooshFramework

class ViewController: UIViewController, PWRichMediaPresentingDelegate {

    override func viewDidLoad() {
        super.viewDidLoad()
        let richMediaConfiguration = PWModalWindowConfiguration.shared()

        PWRichMediaManager.shared().delegate = self
        richMediaConfiguration.configureModalWindow(with: .PWModalWindowPositionBottom,
                                                                 present: .PWAnimationPresentFromBottom,
                                                                 dismiss: .PWAnimationDismissDown)
    }

    func richMediaManager(_ richMediaManager: PWRichMediaManager!, shouldPresent richMedia: PWRichMedia!) -> Bool {
        print("Rich media will be presented with: \(richMedia.pushPayload!)")
        return true
    }

    func richMediaManager(_ richMediaManager: PWRichMediaManager!, didPresent richMedia: PWRichMedia!) {
        print("Rich media has been presented with: \(richMedia.pushPayload!)")
    }

    func richMediaManager(_ richMediaManager: PWRichMediaManager!, didClose richMedia: PWRichMedia!) {
        print("Rich media has been closed with: \(richMedia.pushPayload!)")
    }

    func richMediaManager(_ richMediaManager: PWRichMediaManager!, presentingDidFailFor richMedia: PWRichMedia!, withError error: (any Error)!) {
        print("Failed to present rich media with: \(richMedia.pushPayload!). Error: \(error.localizedDescription)")
    }
}

#import "ViewController.h"
#import <PushwooshFramework/PushwooshFramework.h>
#import <PushwooshFramework/PWRichMediaManager.h>
#import <PushwooshFramework/PWModalWindowConfiguration.h>

@interface ViewController () <PWRichMediaPresentingDelegate>

@end

@implementation ViewController

- (void)viewDidLoad {
    [super viewDidLoad];

    [[PWRichMediaManager sharedManager] setDelegate:self];
    [[PWModalWindowConfiguration shared] configureModalWindowWith:PWModalWindowPositionBottom
                                                 presentAnimation:PWAnimationPresentFromBottom
                                                 dismissAnimation:PWAnimationDismissDown];
}

- (BOOL)richMediaManager:(PWRichMediaManager *)richMediaManager shouldPresentRichMedia:(PWRichMedia *)richMedia {
    NSLog(@"Rich media will be presented with: %@", richMedia.pushPayload);
    return YES;
}

- (void)richMediaManager:(PWRichMediaManager *)richMediaManager didPresentRichMedia:(PWRichMedia *)richMedia {
    NSLog(@"Rich media has been presented with: %@", richMedia.pushPayload);
}

- (void)richMediaManager:(PWRichMediaManager *)richMediaManager didCloseRichMedia:(PWRichMedia *)richMedia {
    NSLog(@"Rich media has been closed with:: %@", richMedia.pushPayload);
}

- (void)richMediaManager:(PWRichMediaManager *)richMediaManager presentingDidFailForRichMedia:(PWRichMedia *)richMedia withError:(NSError *)error {
    NSLog(@"Failed to present rich media with: %@. Error: %@", richMedia.pushPayload, error.localizedDescription);
}

@end

Troubleshooting

If you encounter any issues during the integration process, please refer to the support and community section.
