How to set up a retention campaign in Pushwoosh

Create retention campaigns with Pushwoosh Customer Journey Builder

If you have already successfully onboarded and activated a user, this may still not be enough for them to continue using your app for a long time. Create retention campaigns in Pushwoosh Customer Journey Builder to keep users returning to your app and reduce churn rate.

Tips for creating an effective retention campaign:

Provide value: show how your app will entertain your users or help them solve their problems.
Personalize communication: send content that matches the user's preferences, address users by their names, and use a friendly tone.
Use multiple channels: send push notifications, show in-app messages or launch retention email campaigns depending on the type of your business and the stage your user is currently on.
Continuously improve your campaigns: experiment with segmentation and sending time, analyze user behavior, reduce drop-offs, and make more relevant content and offers.

Below, we will show you how to create two types of retention campaigns in Customer Journey Builder: a user retention campaign and a customer retention campaign. In our examples, these two types of campaigns have different conversion goals: the user retention campaign appeals to taking the target action in the app, while the customer retention campaign motivates buyers to make another purchase. As the goals differ, the customer journey is also different for these two types of campaigns.

User retention campaign

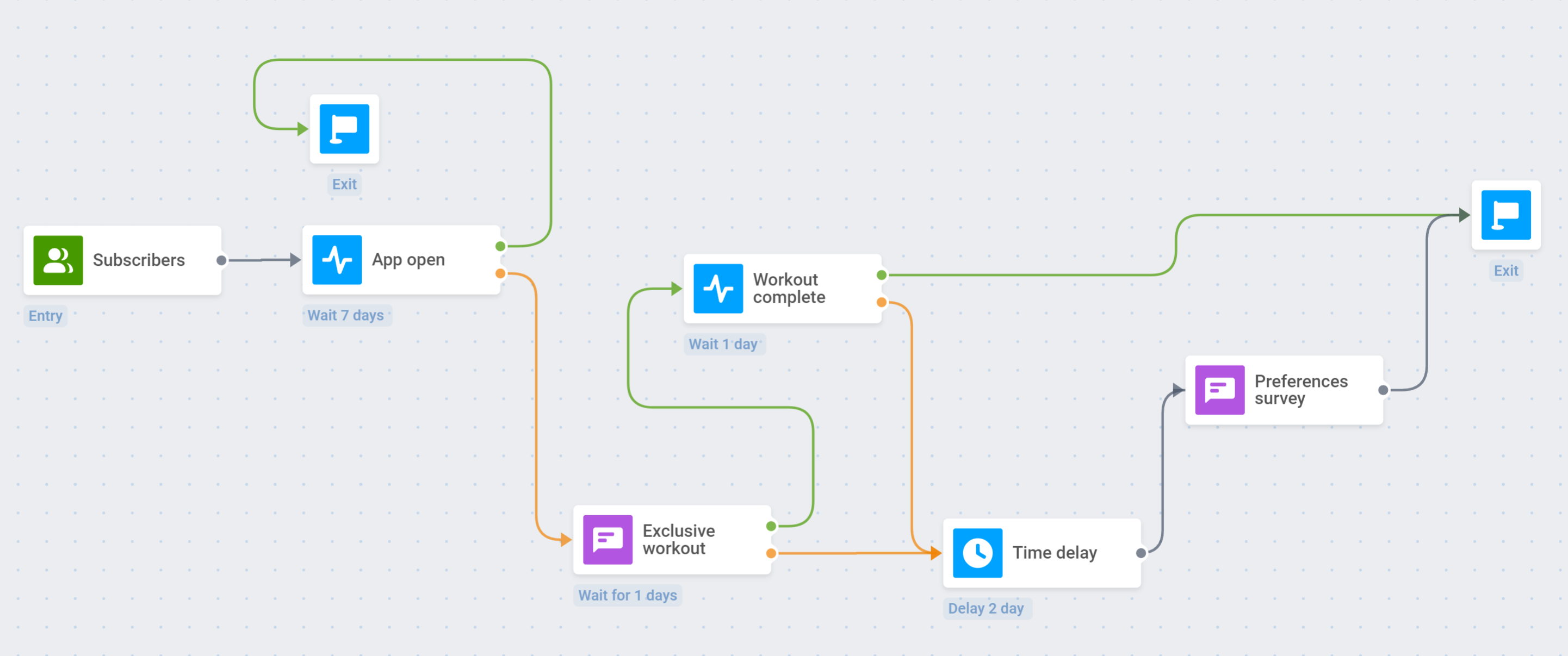

Let’s draft a retention campaign for a paid-subscription workout app. Once complete, it will look like this:

1. Conversion goal

Setting a conversion goal is necessary so that users do not re-enter the same Journey if they have already completed the goal. We will assume that our user retention campaign reaches its goal if a user completes the workout.

First, we will create the Workout complete event in the Pushwoosh project and configure it in our example workout app using the postEvent API.

After that, we will start creating a new Customer Journey. On the top bar, we will click on Conversion Goals and select the Workout complete event. We want the Journey to end for the user that fires the target event, so we will enable this option and then apply changes:

2. Entry point and trigger

We want to launch a retention campaign for app subscribers who haven't opened the app for seven days.

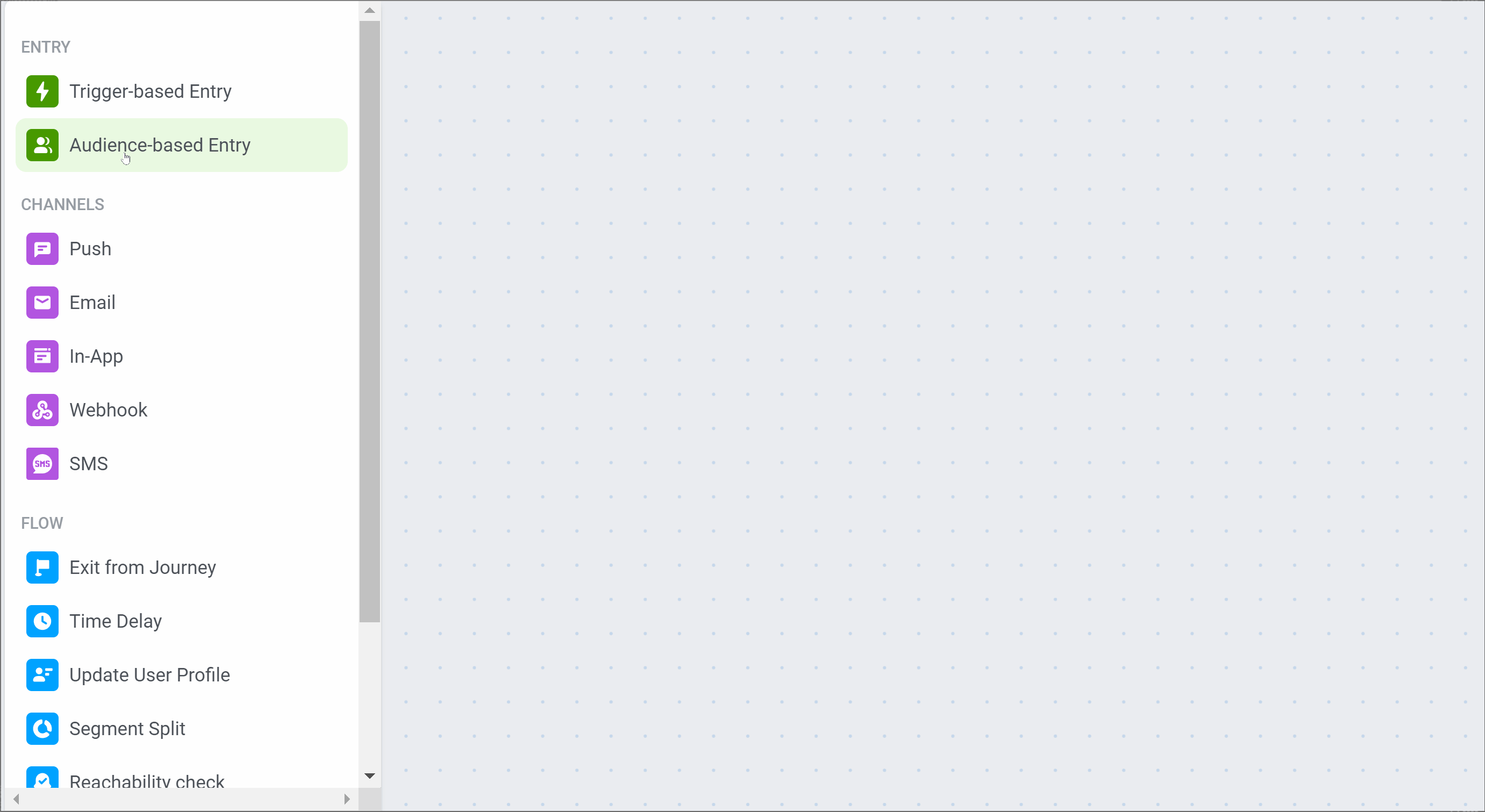

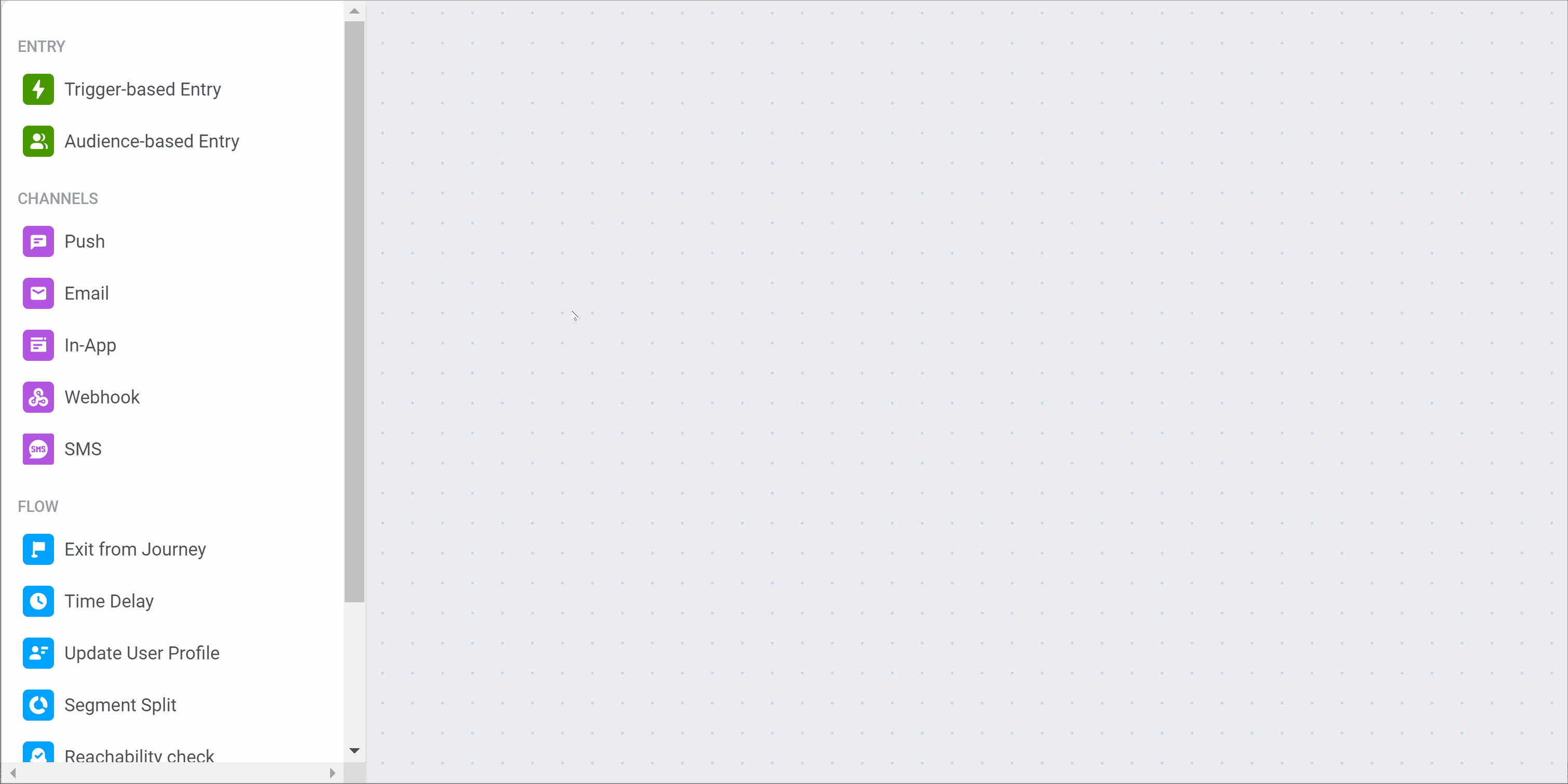

First, we will add the Audience-based Entry and select Subscribers as the audience source:

We assigned a particular Tag to each user once they’ve subscribed to the app. Using this Tag, we compiled the Subscribers segment.

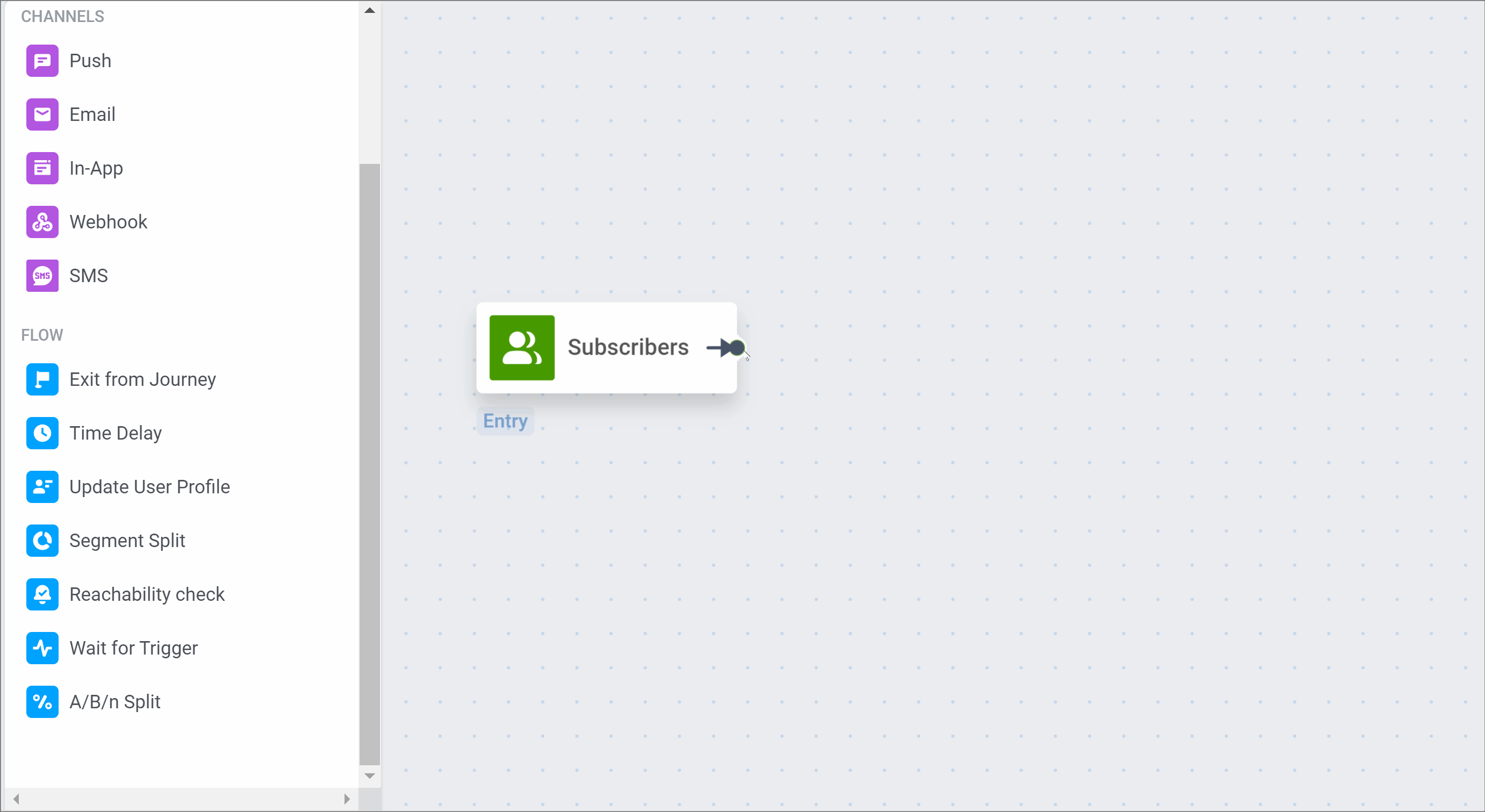

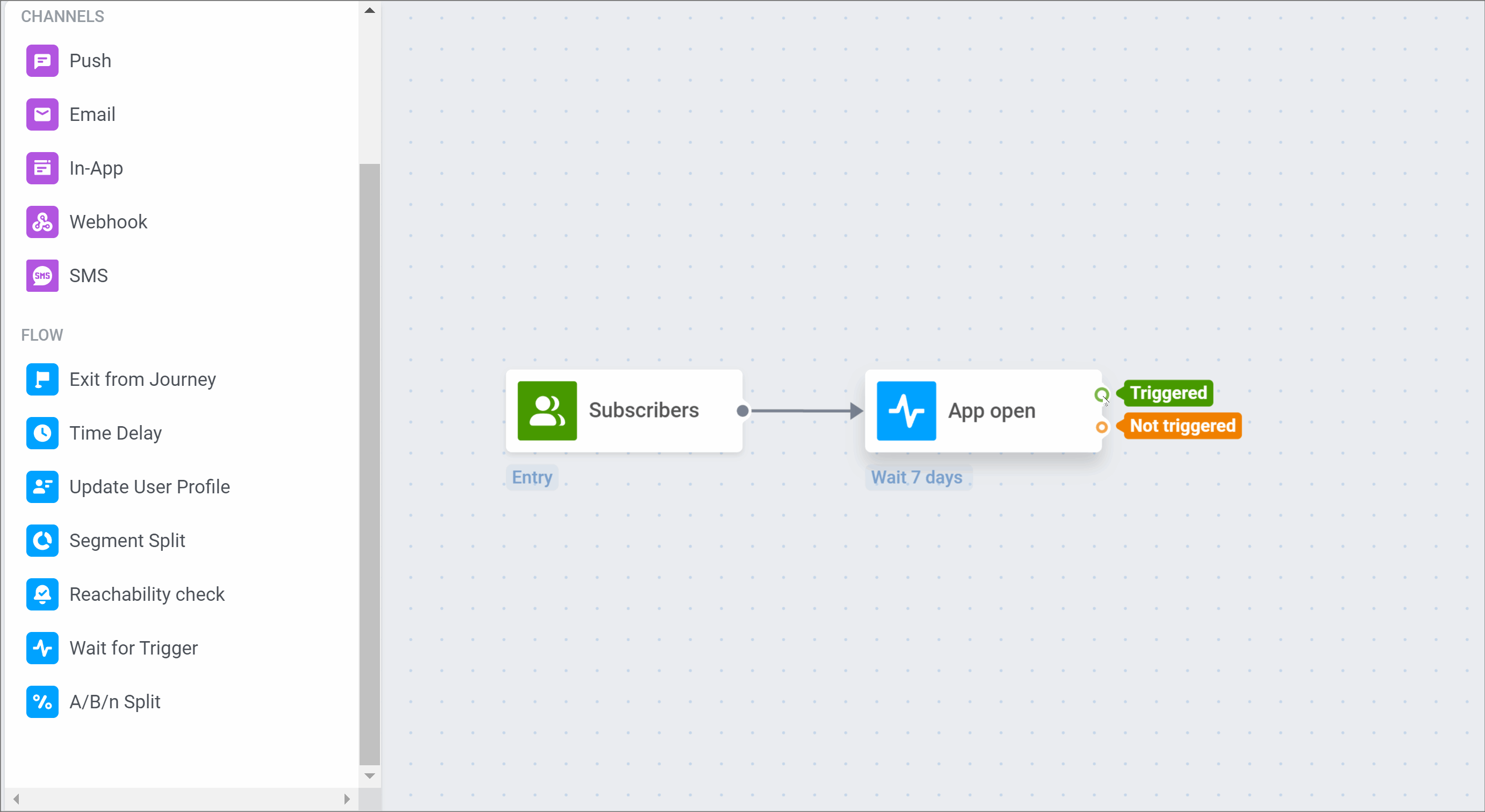

Then, we will add the Wait for Trigger element and specify the default PW_ApplicationOpen event with a seven-day waiting period:

The waiting period may vary depending on the category of your app.

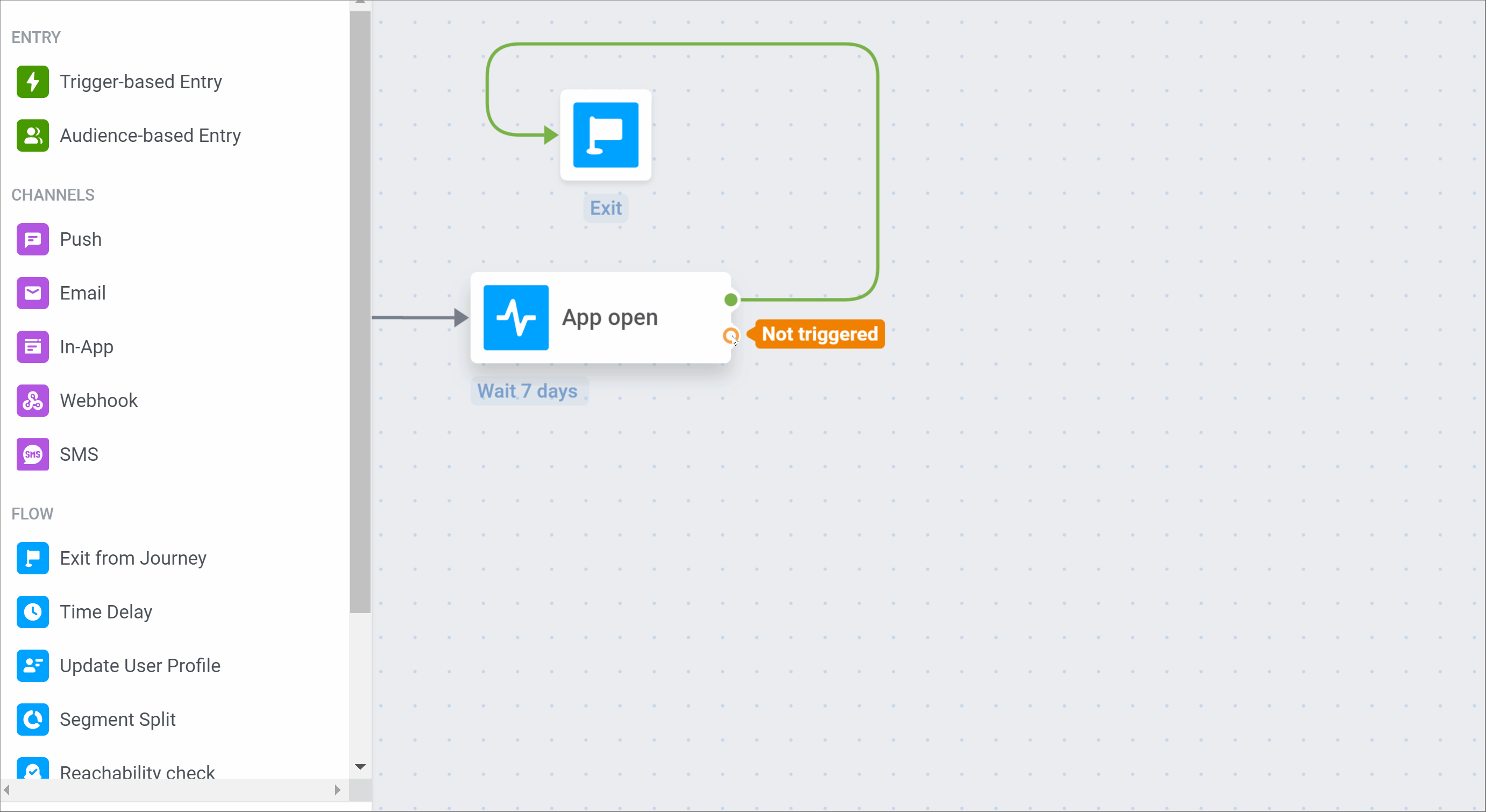

If a user opens the app at least once within seven days, they will exit the Journey:

You can also build the desired segment automatically using the RF(M) segmentation feature.

3. First push notification

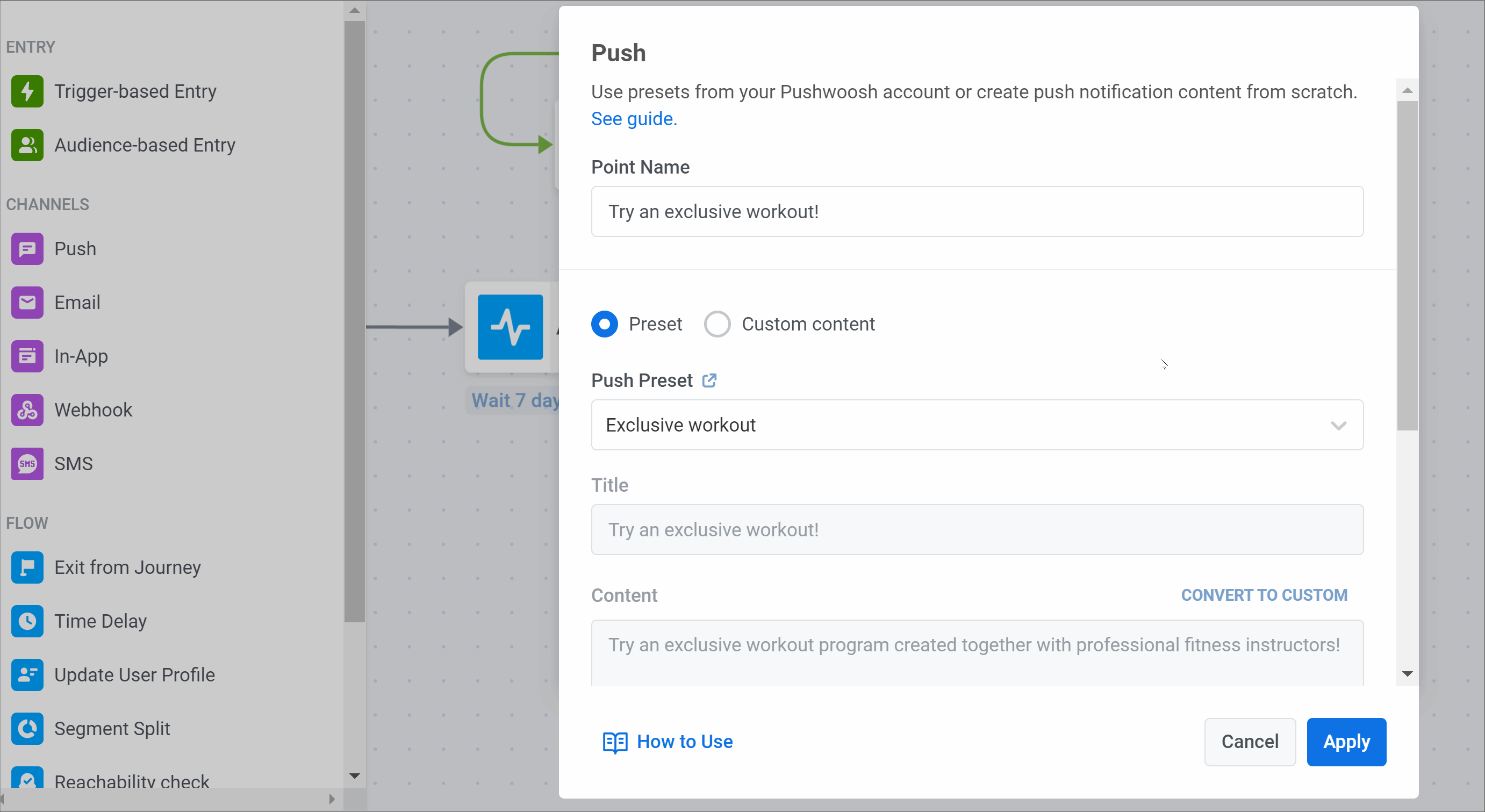

If a user has not opened the app at least once in seven days, we will send them a push notification offering to try an exclusive workout:

To make this push notification, we first created a Deep Link leading to an exclusive workout in our example app. Then, we configured a push message containing this deep link and saved it as a Preset.

To get the best results, you can personalize push notifications: for example, insert the user's name or optimize content based on the workout preferences they shared in their profile or during onboarding.

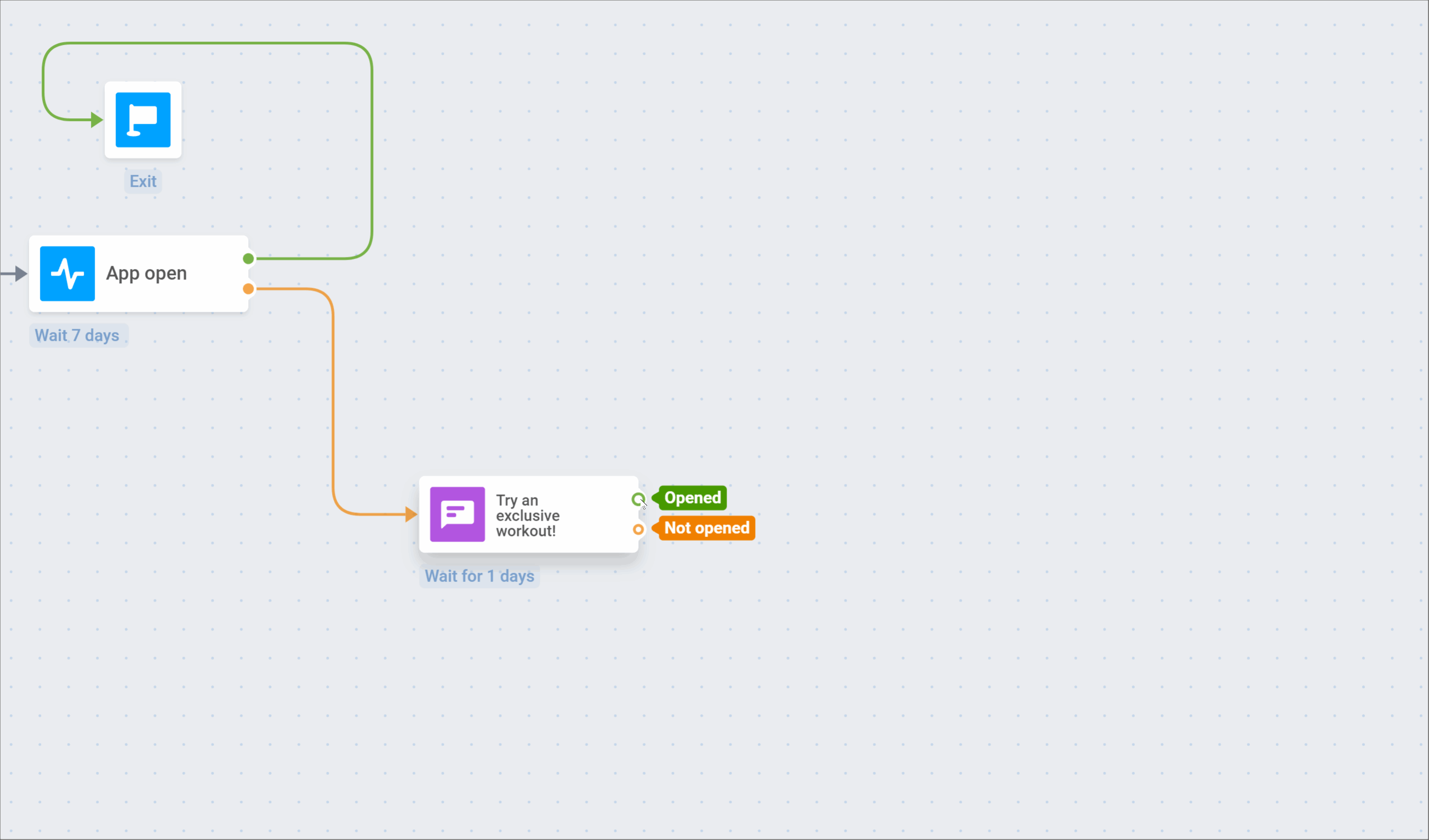

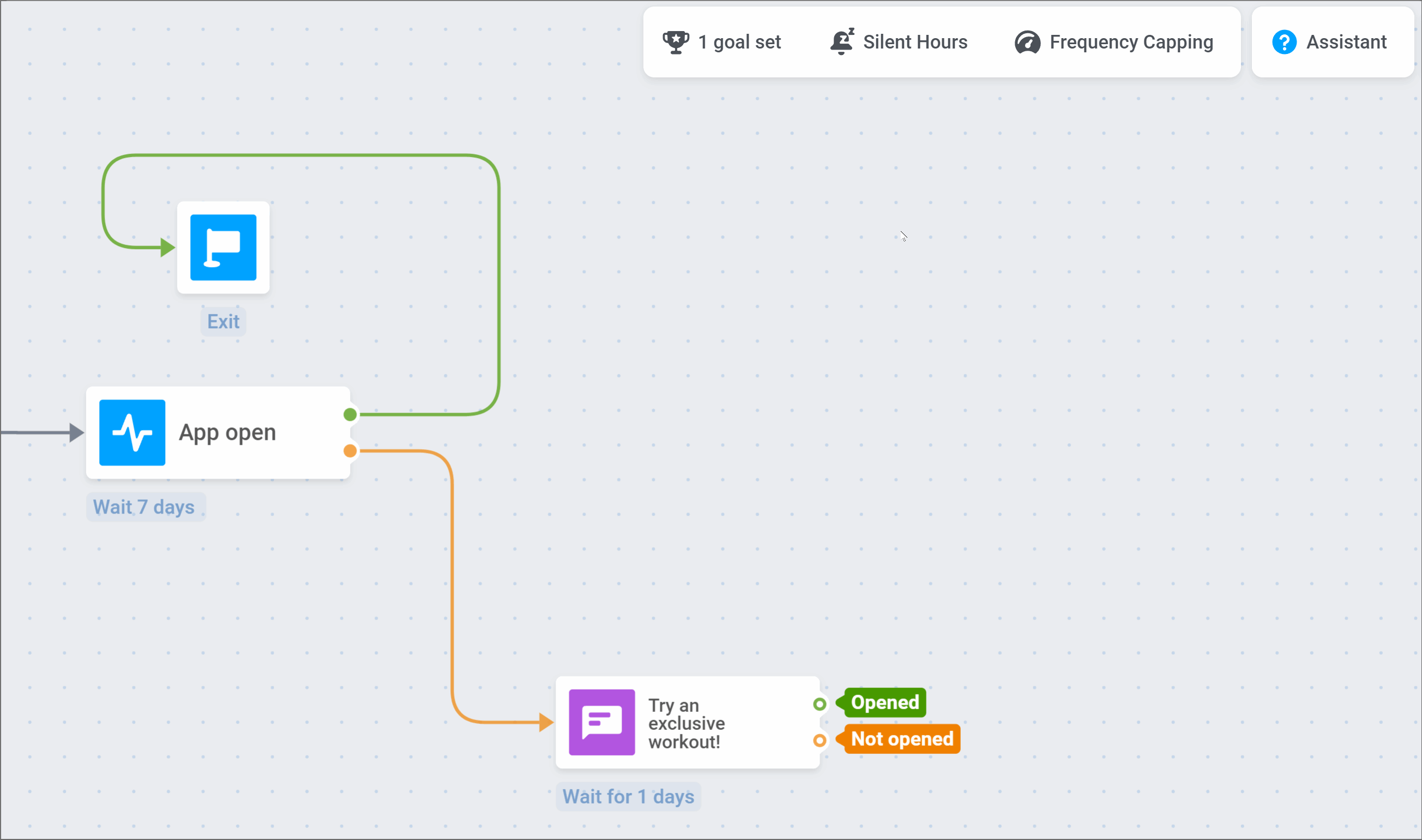

Now, let’s split the flow depending on whether this push is opened or ignored:

We will also set Silent Hours to prevent users from receiving workout push notifications at inappropriate times:

4. Workout trigger

for those who opened the first push notification

If a user clicks on the push notification, we will check if they have completed the workout.

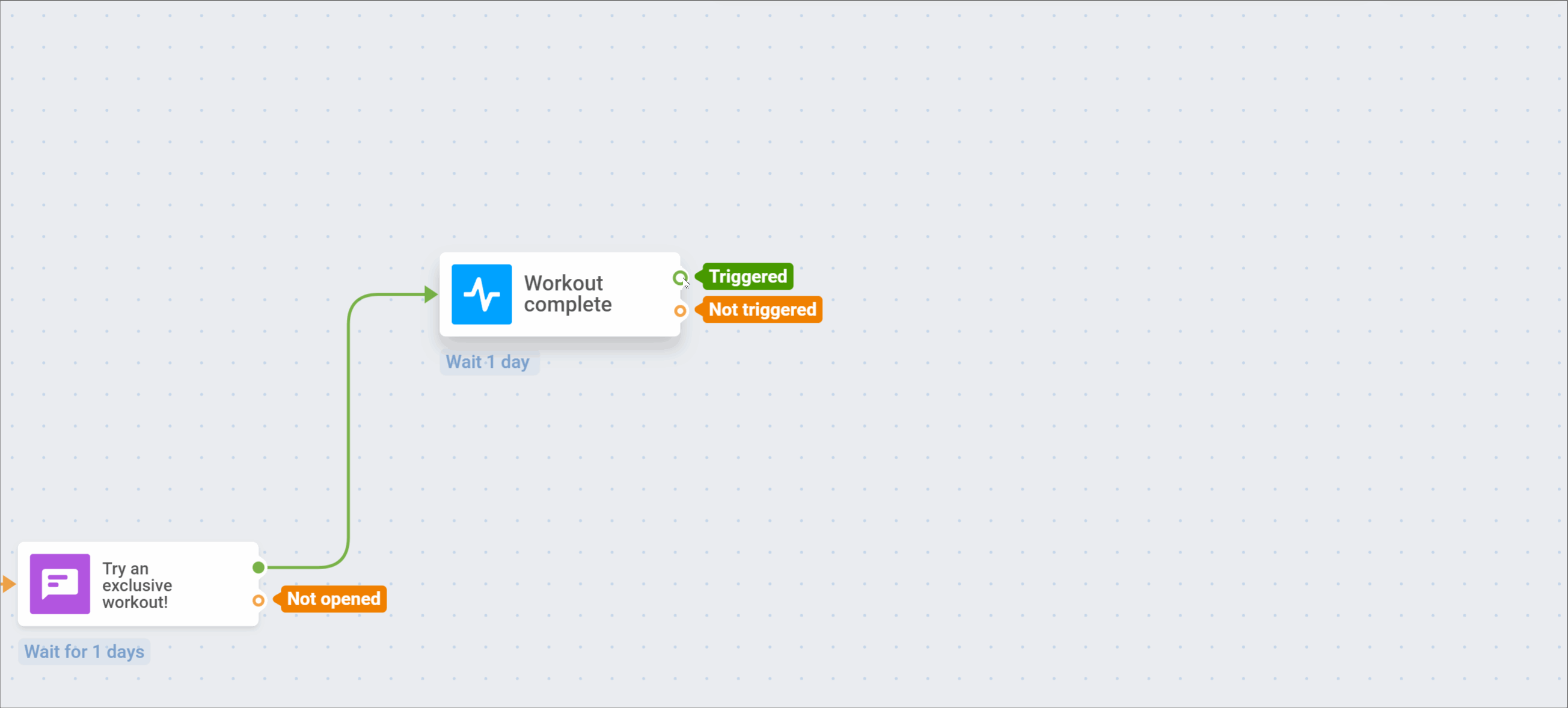

First, we will set up the Workout complete event in the app and the Pushwoosh project. Then, we will add the Wait for Trigger element with the Workout complete event selected:

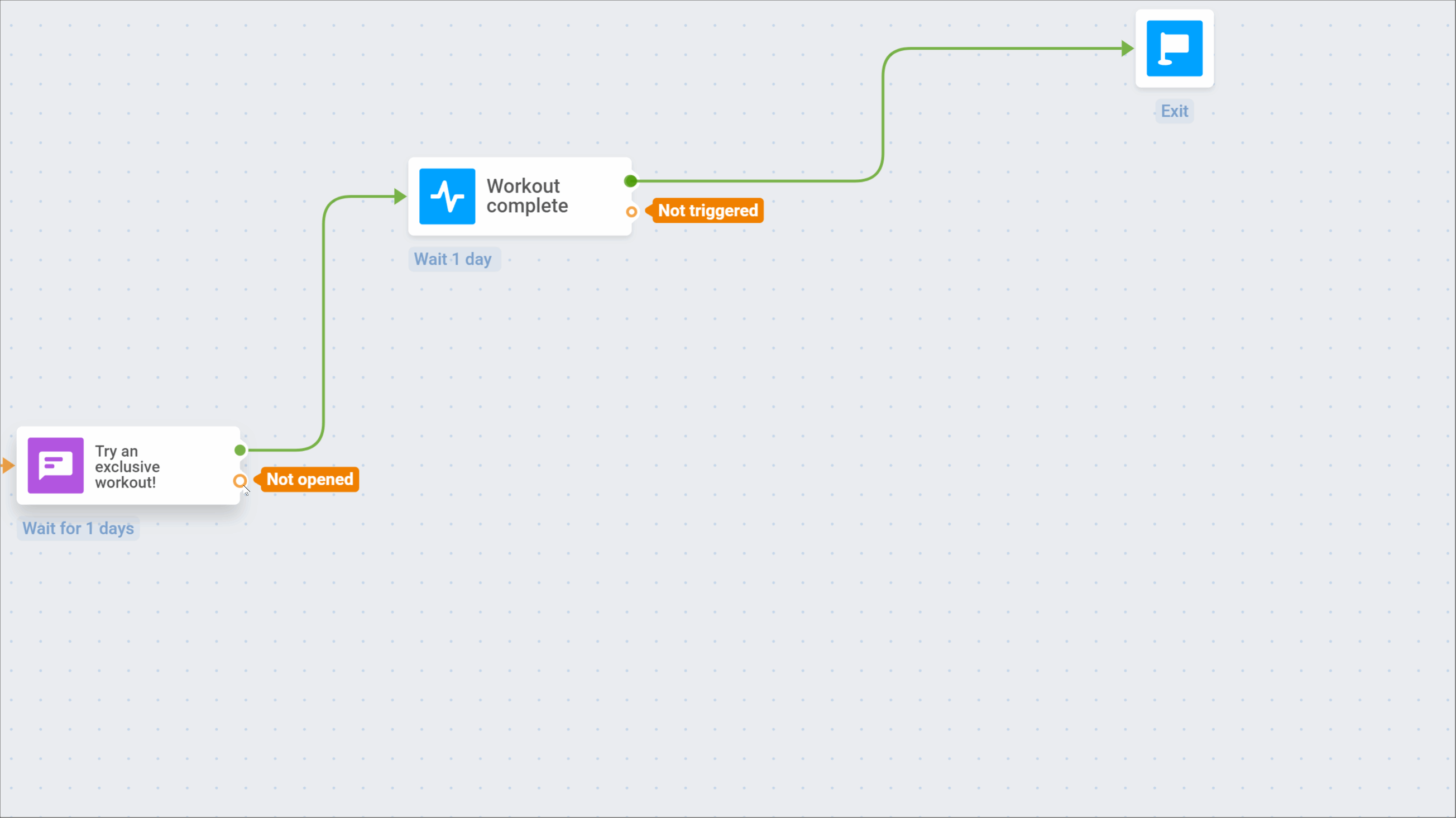

If a user completes the workout, they will exit the Journey:

5. Time delay

for those who did not open the first push notification or did not complete the workout

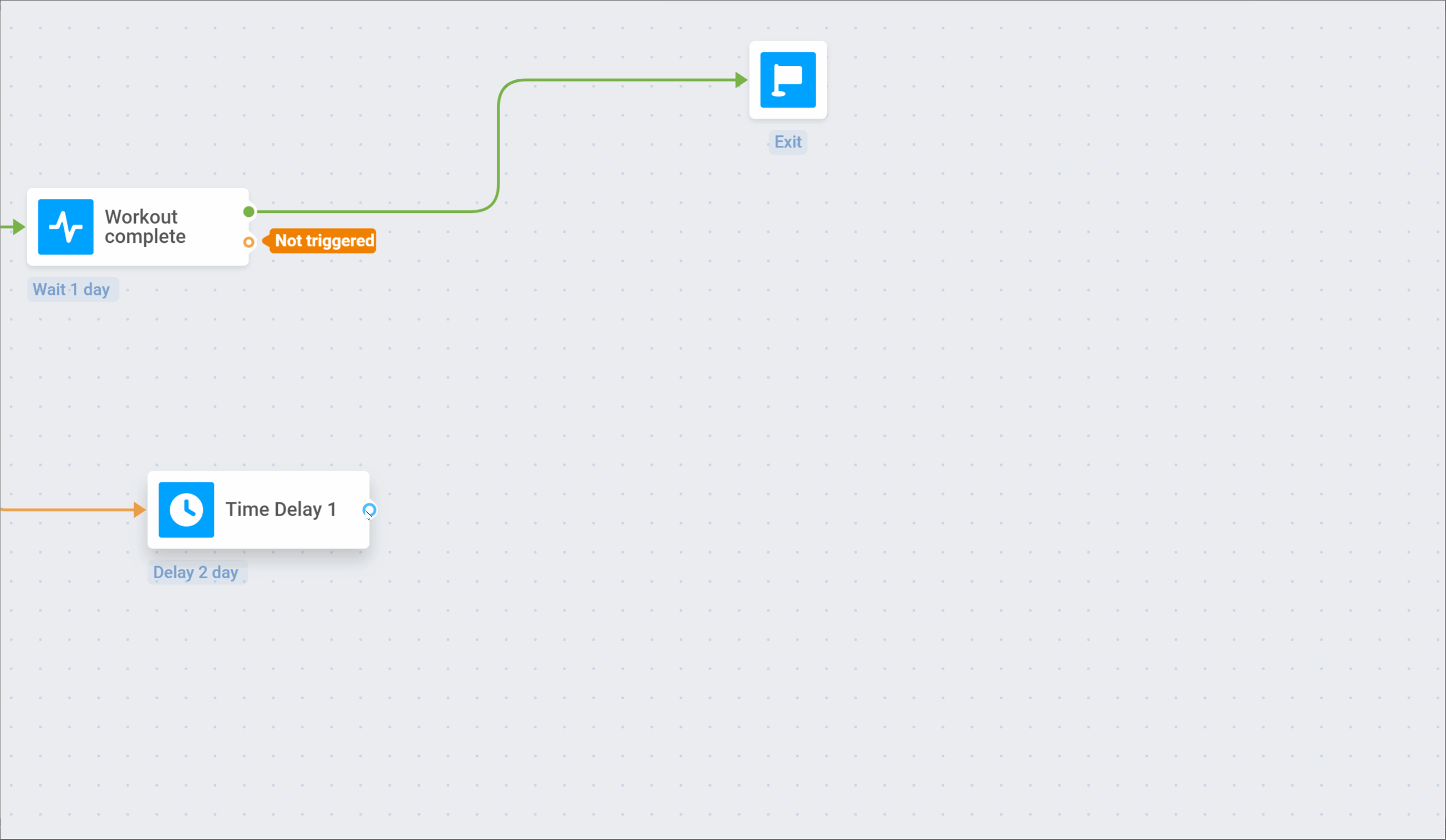

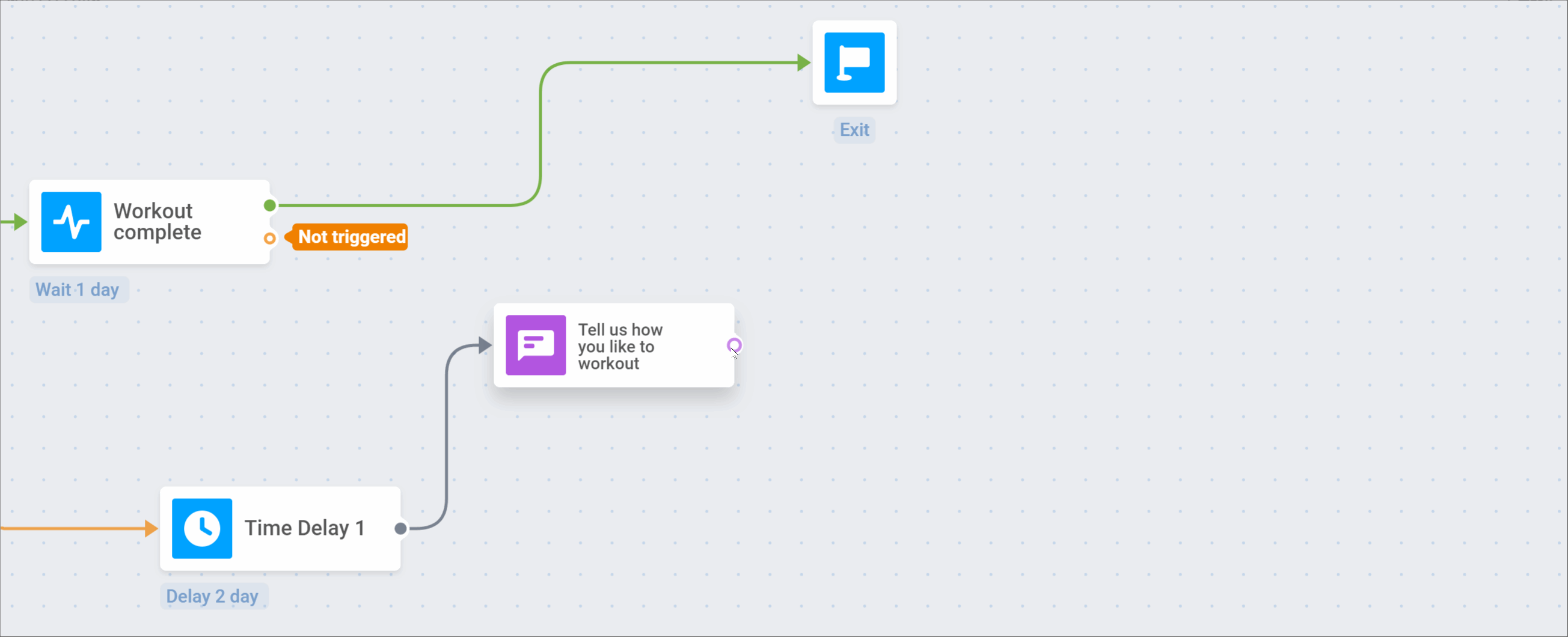

If a user ignores the push notification or does not complete the workout, we will wait for two days before sending anything else. To do this, we will add the Time Delay element:

6. Second push notification

After the specified time, we will send the second push notification prompting users to take a survey and tell about their preferences. This survey will help us improve our workout app and launch personalized campaigns in the future.

To make this push notification, we first created Rich Media with a workout preferences survey and set the Tag values based on user answers. Then, we configured a Rich Media push and saved it as a Preset.

After sending the second push notification, we will end the Journey:

Customer retention campaign

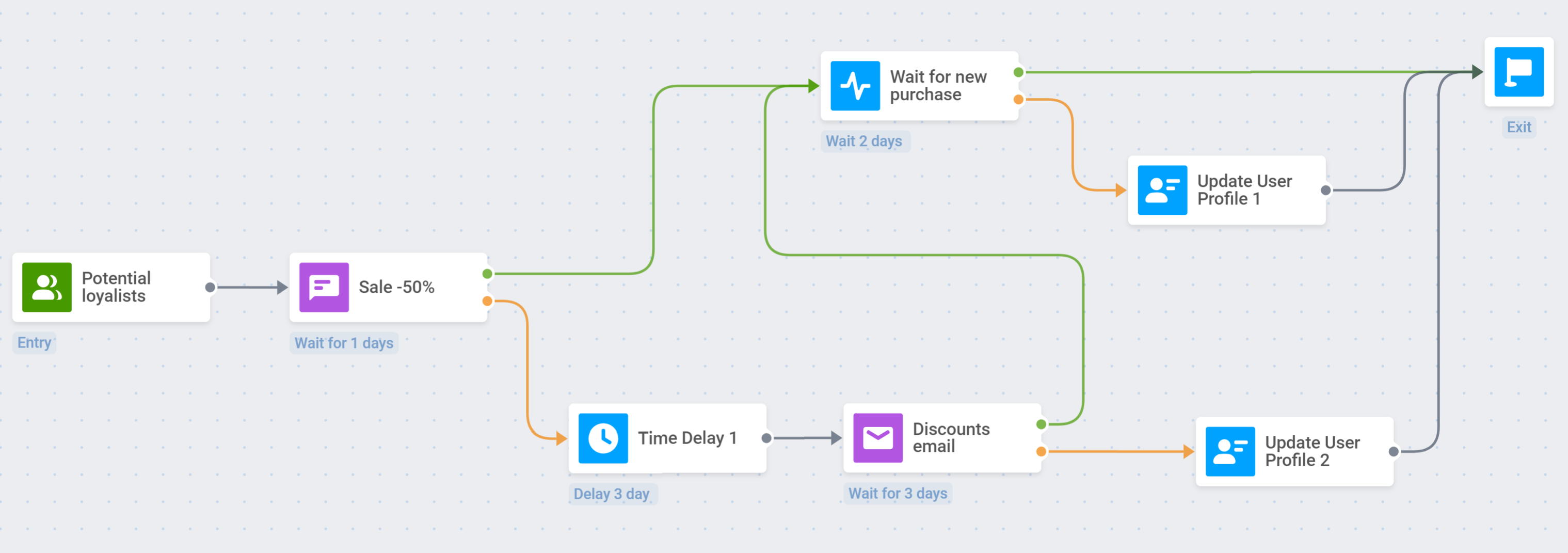

As an example of a customer retention campaign, we will create a Customer Journey for a clothing app. Once complete, it will look like this:

1. Conversion goal

Setting a conversion goal is necessary so that users do not re-enter the same Journey if they have already completed the goal. We will assume that our customer retention campaign reaches its goal if a user makes a purchase.

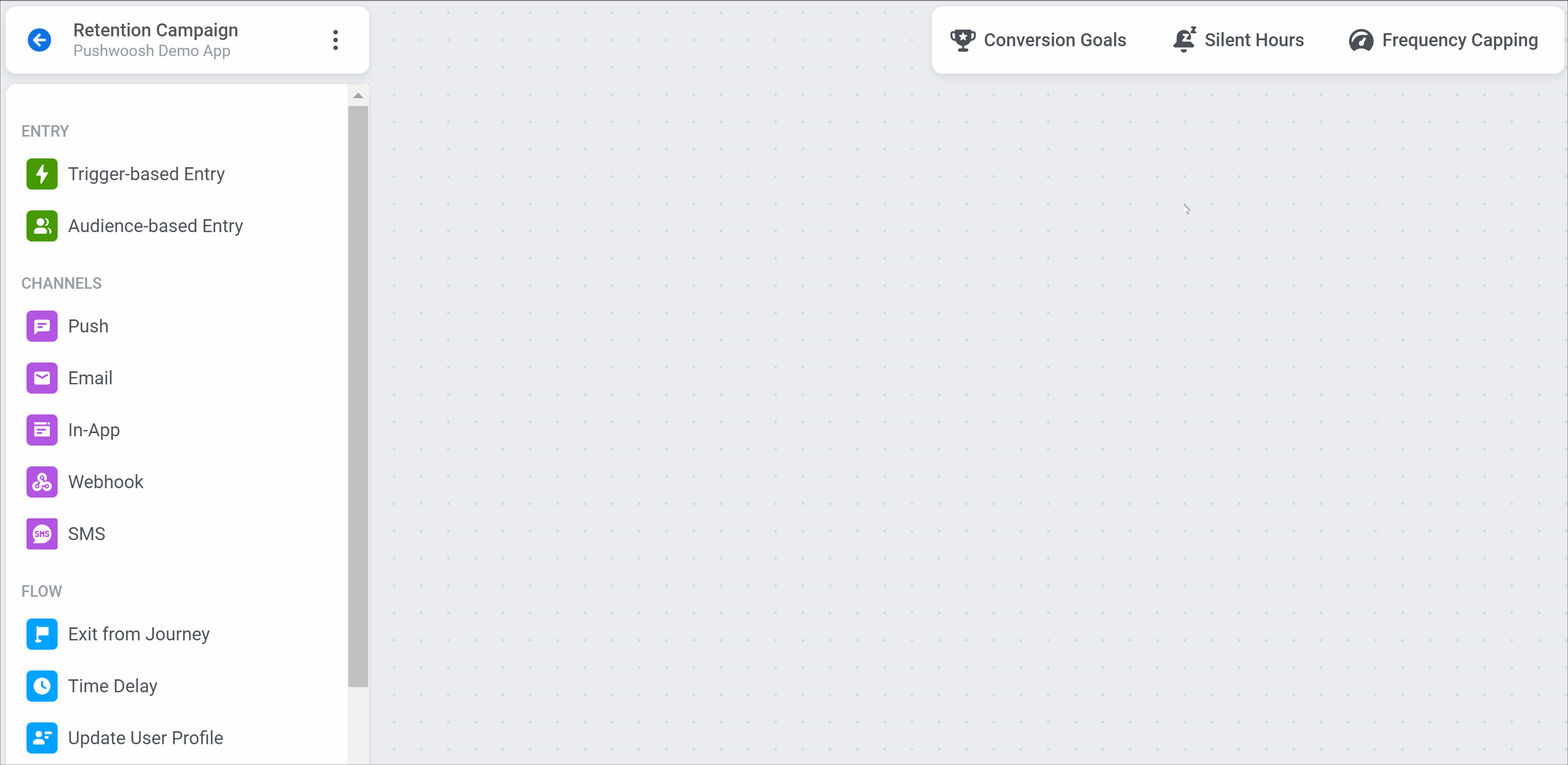

On the top bar of the new Customer Journey window, we will click on Conversion Goals and select the default PW_InAppPurchase event. We want the Journey to end for the user after the event fires, so we will enable this option and then apply changes:

2. Entry point and trigger

We are going to launch a retention campaign for customers who purchased something recently. We want to motivate these people to buy more often and improve their loyalty to our e-commerce app.

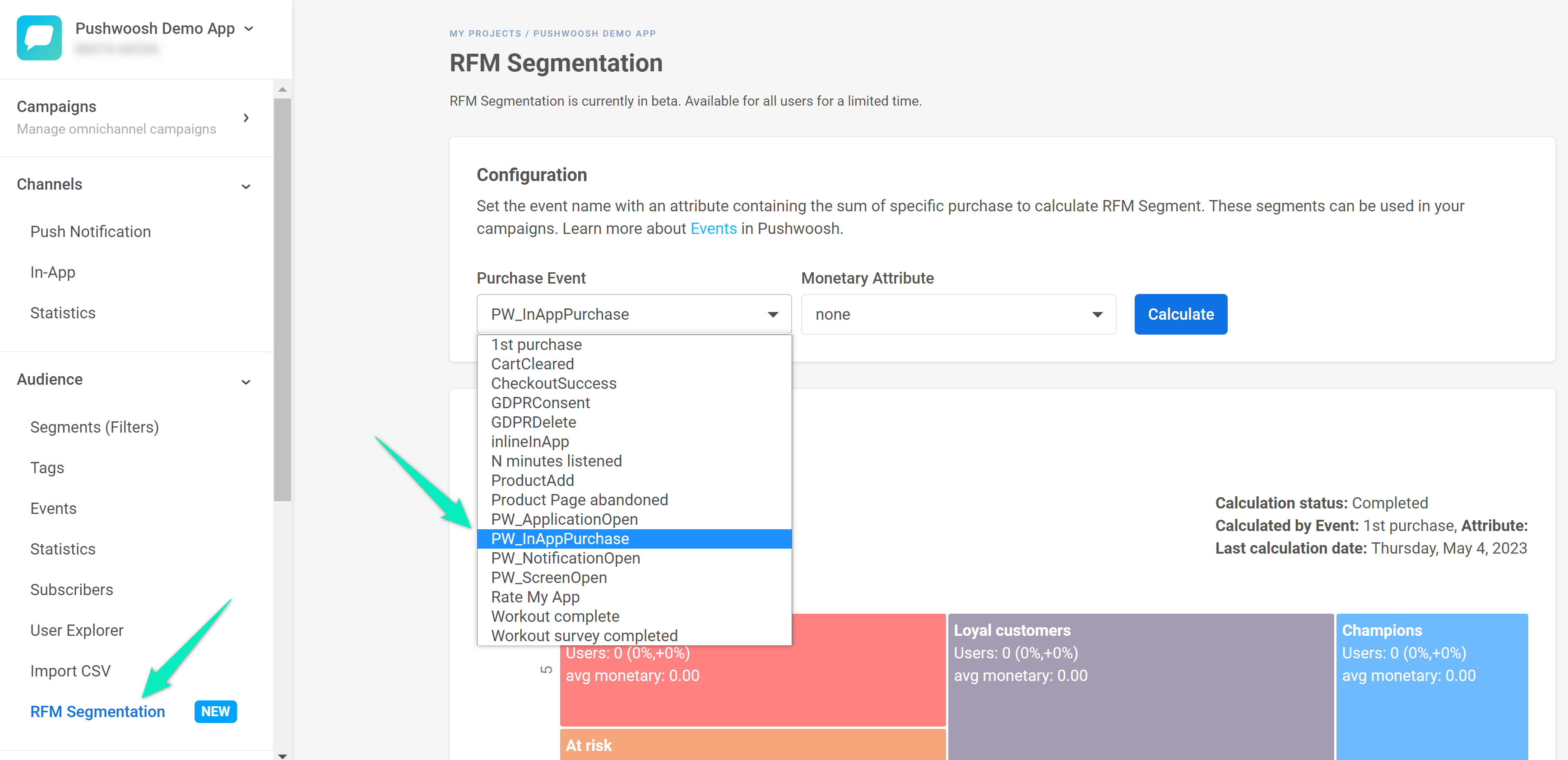

First, we will calculate segments of users who made a purchase in our app at least once. To do this, we will go to the RFM segmentation section and select the default PW_InAppPurchase event:

Pushwoosh will automatically create several customer segments of users who performed the PW_InAppPurchase event. We will use the Potential loyalists segment because it includes customers who purchased something recently.

You can also build Segments manually if you need narrow segments with specific parameters.

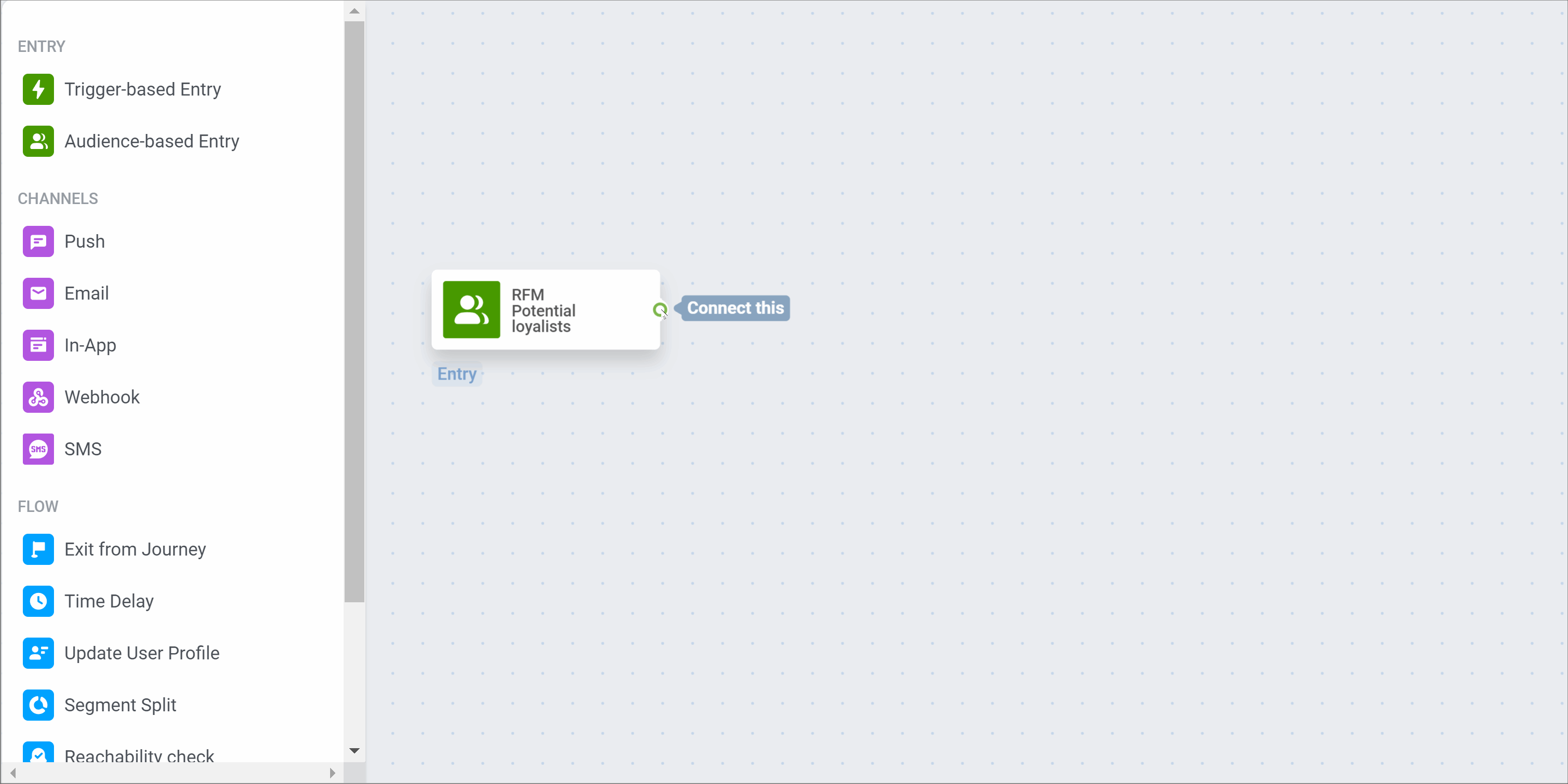

Now we will add the Audience-based Entry and select RFM Potential loyalists as the audience source:

3. Push notification

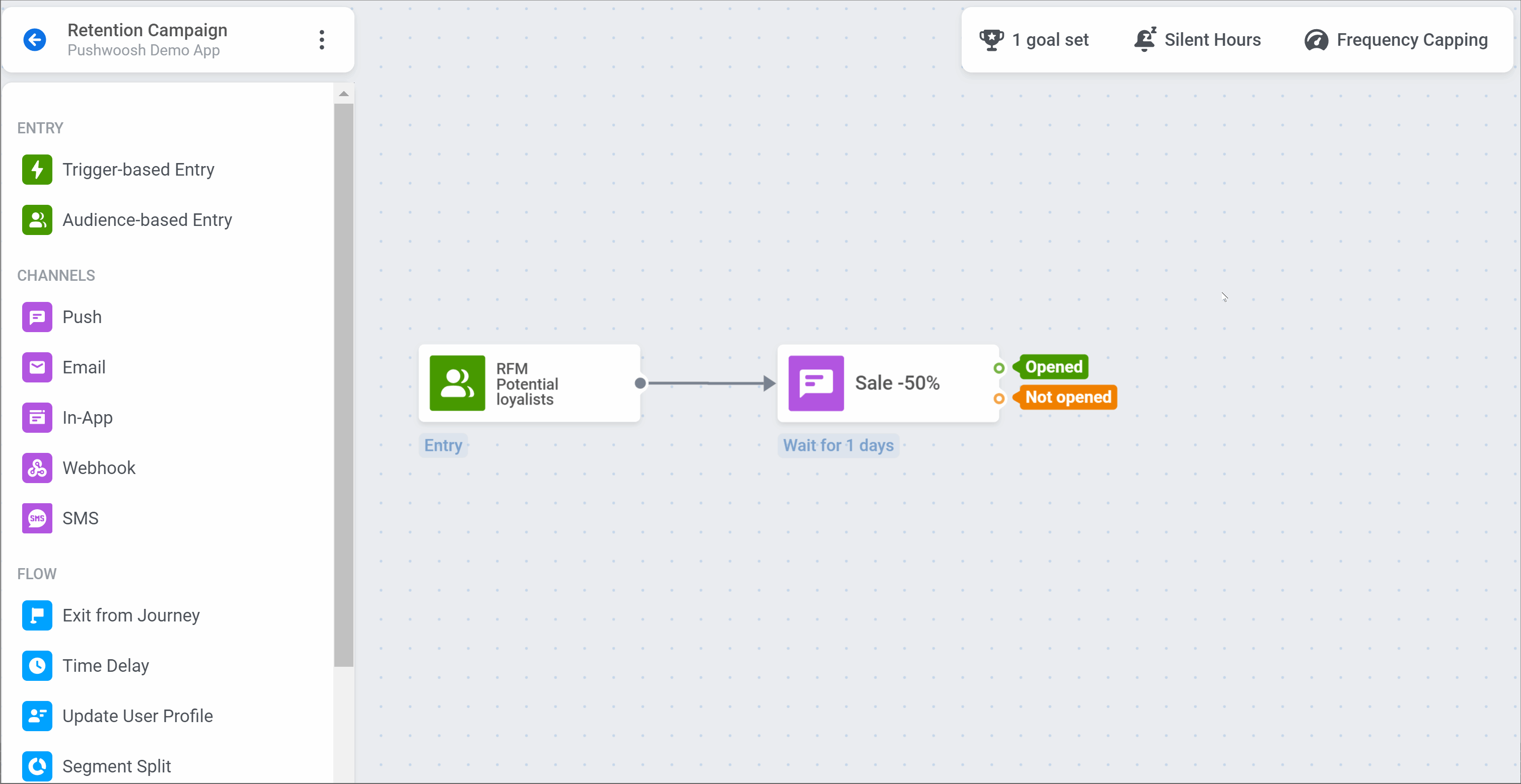

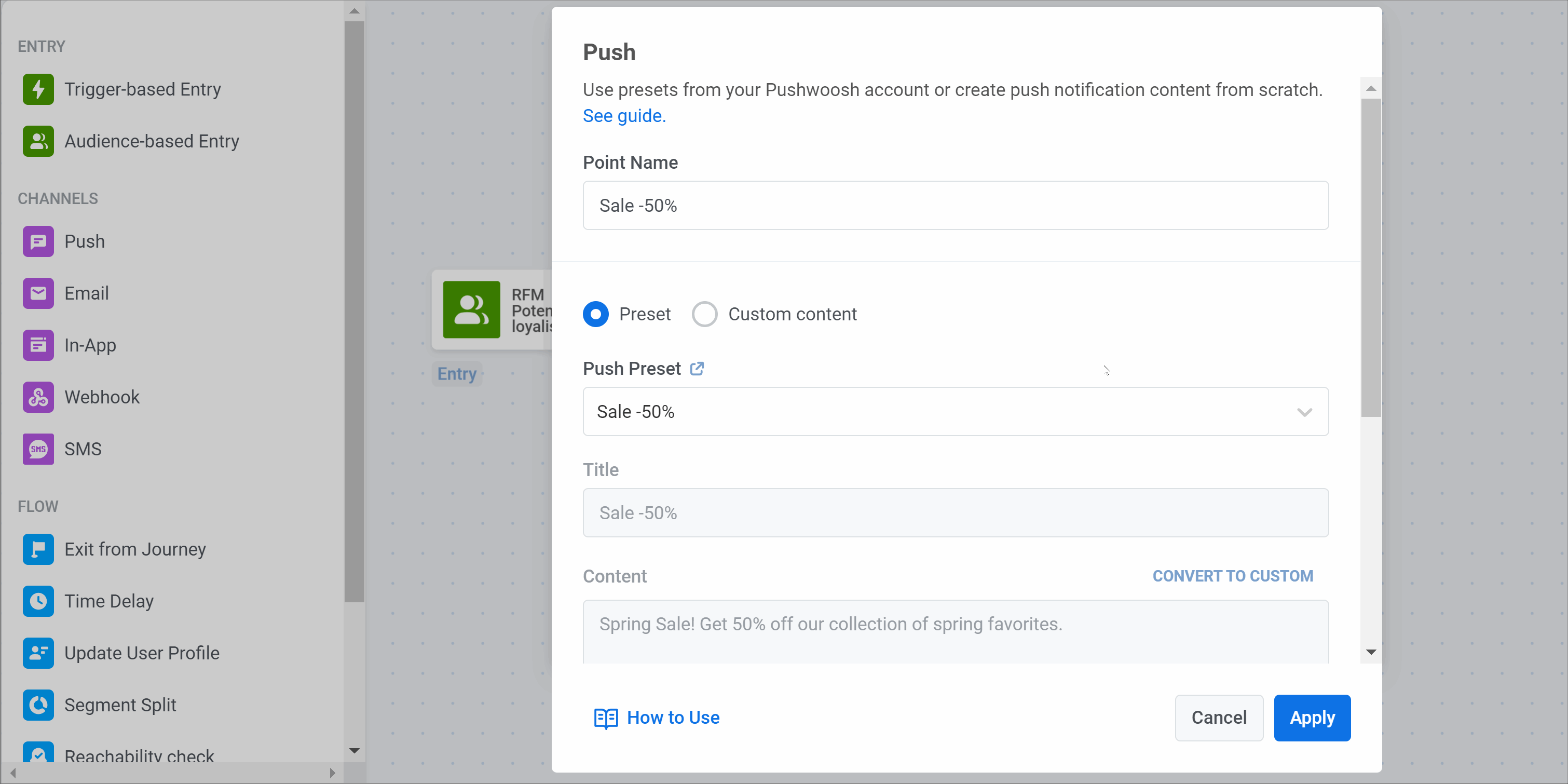

We will send our Potential loyalists a push notification about the sale in our example app:

To make this push notification, we first created a Deep Link leading to the sale section in our clothing app. Then, we configured a push message containing the deep link and saved it as a Preset.

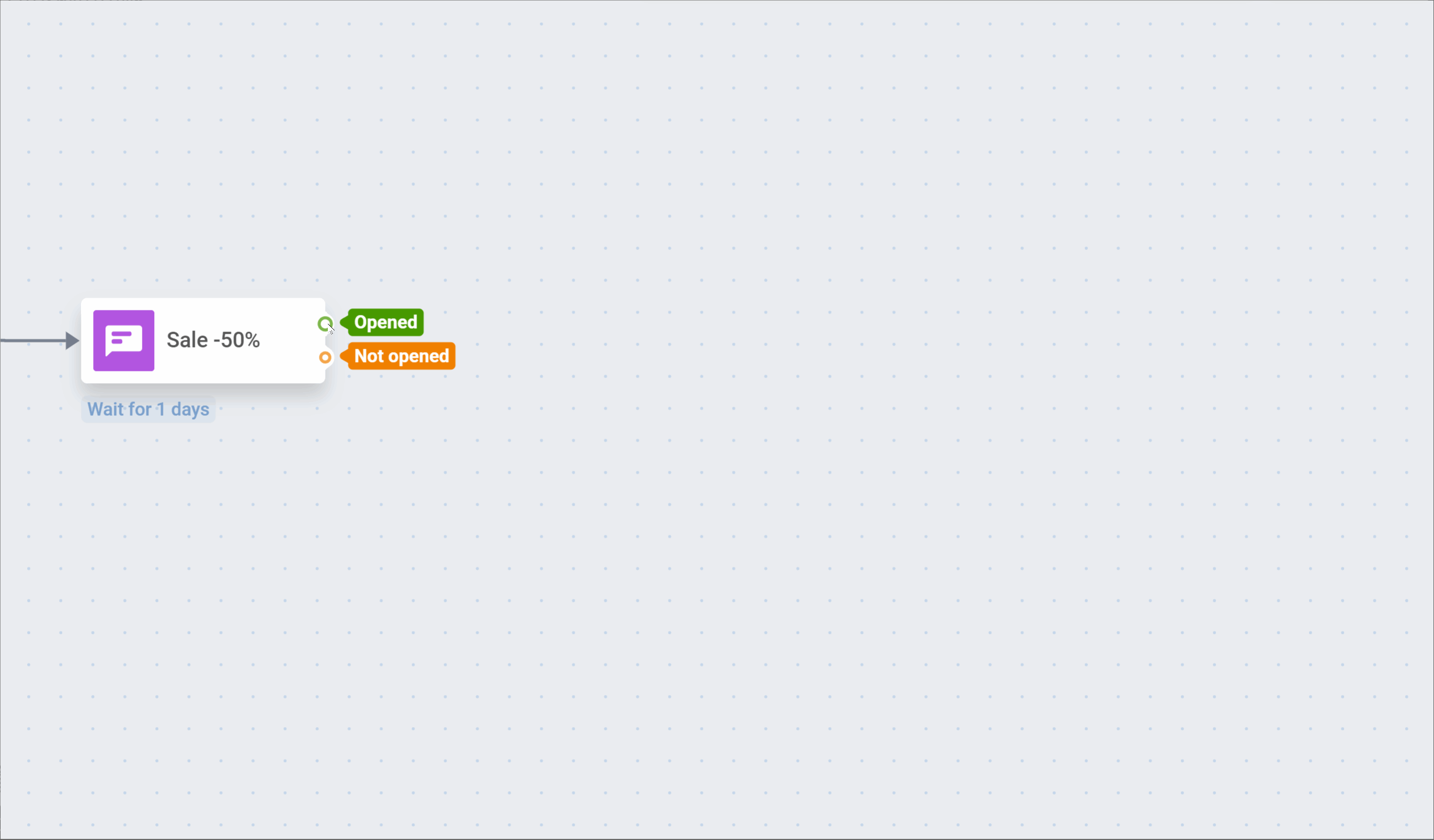

Let’s split the flow depending on whether the customer opened the push:

It is also important to set Silent Hours so that users do not receive push notifications at odd hours:

4. New purchase trigger

for those who opened the push notification

If a user is interested in our sale and clicks on the push notification, we will check if they make a new purchase within two days.

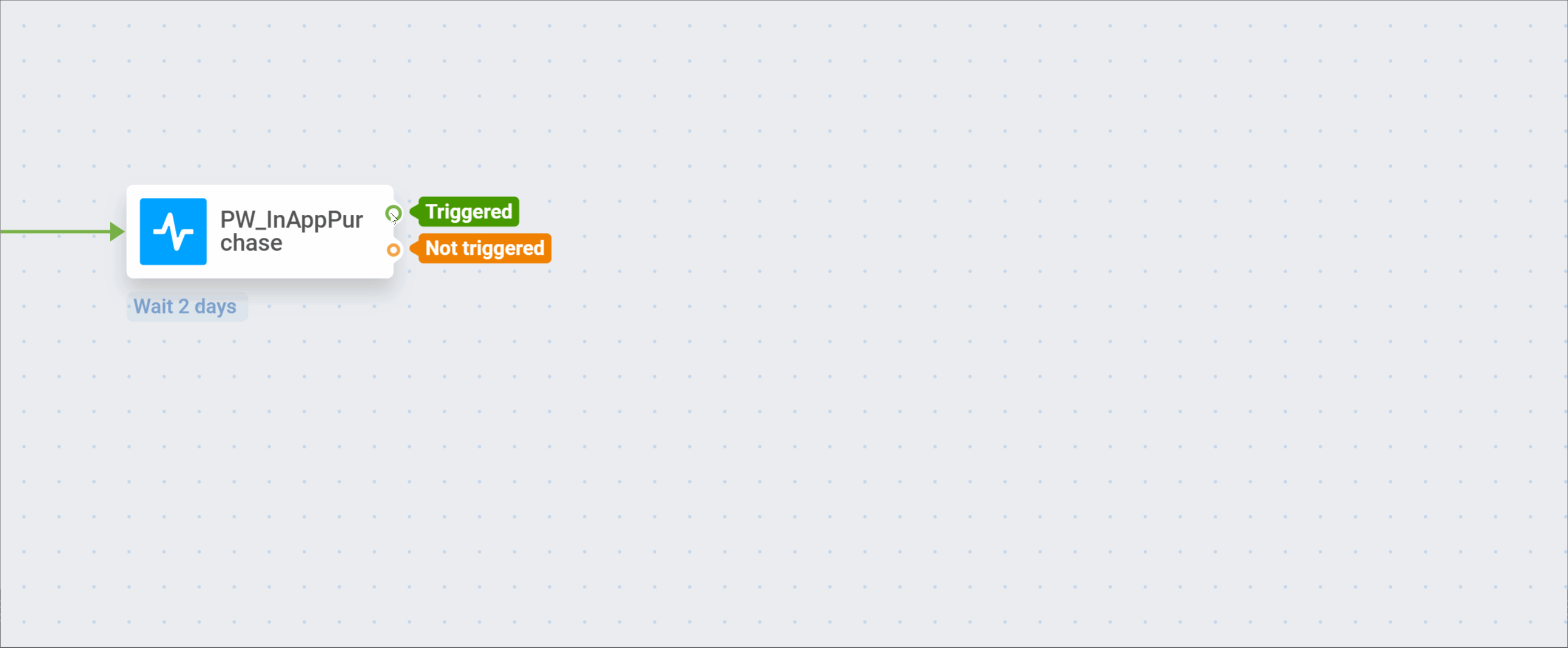

To do so, we will add the Wait for Trigger element and specify the default PW_InAppPurchase event with a two day-waiting period:

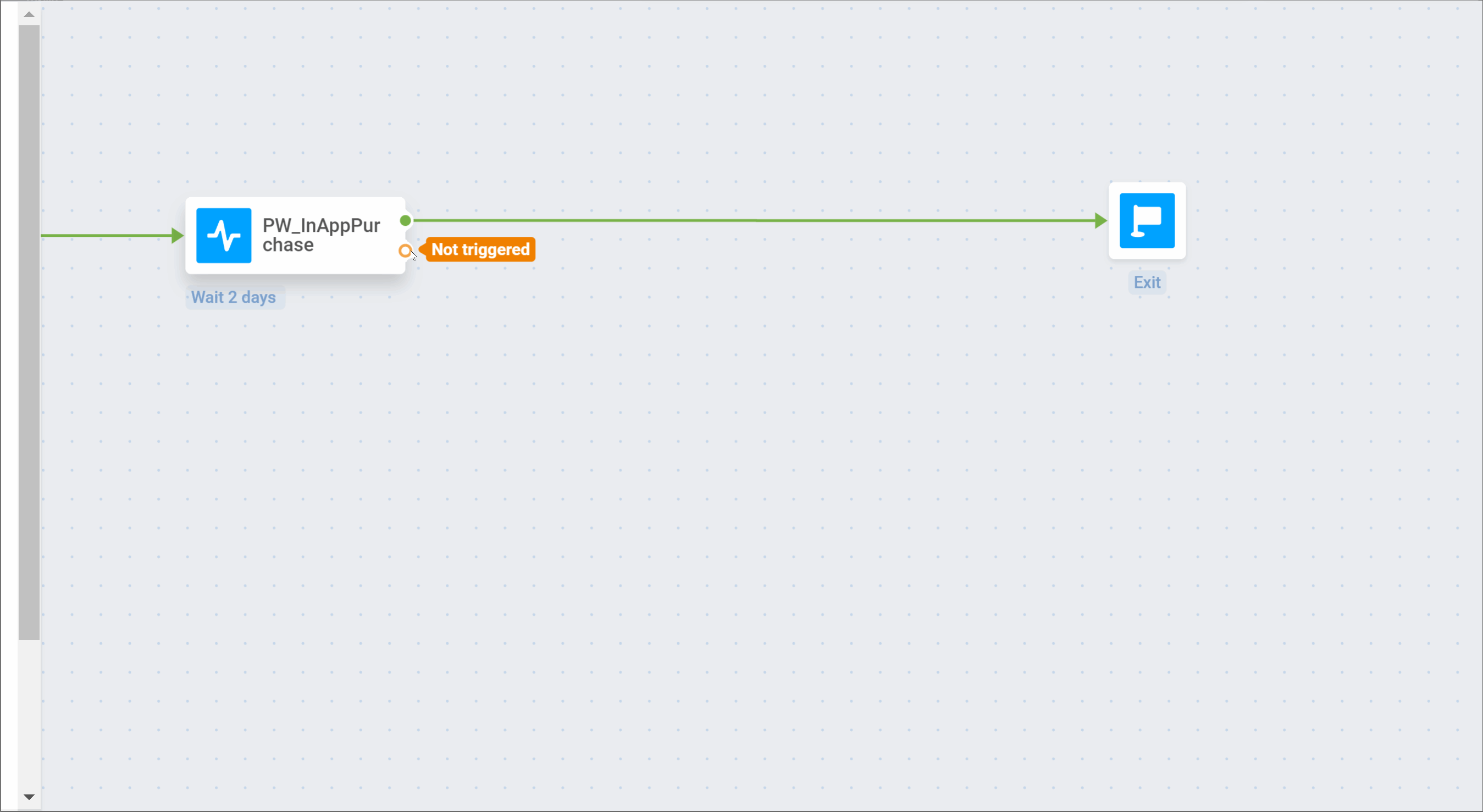

If a user makes a new purchase, they will exit the Journey:

5. Tagging users who have not made a purchase

for those who opened the push notification but has not purchased anything

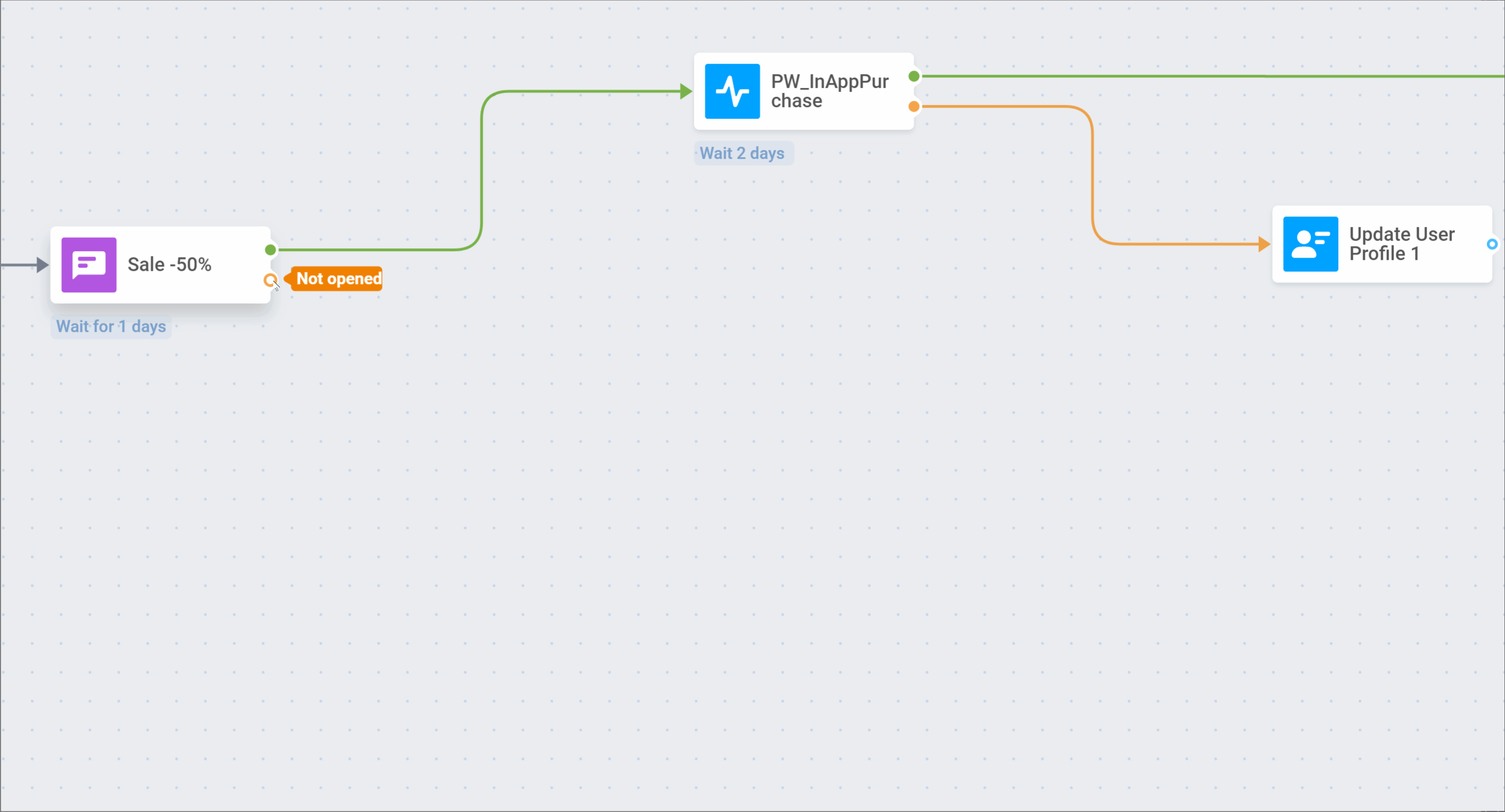

If a user has opened the push notification but has not purchased anything within two days, we will update their profile to assign them the Retention drop-off Tag with the Didn't like the sale value. This will allow us to make a segment of customers who were interested in the sale but did not find anything suitable. Later, we can think about what might interest such customers more and launch another retention campaign for them.

We created the Retention drop-off Tag beforehand and selected the string data type.

6. Time delay

for those who did not open the push notification

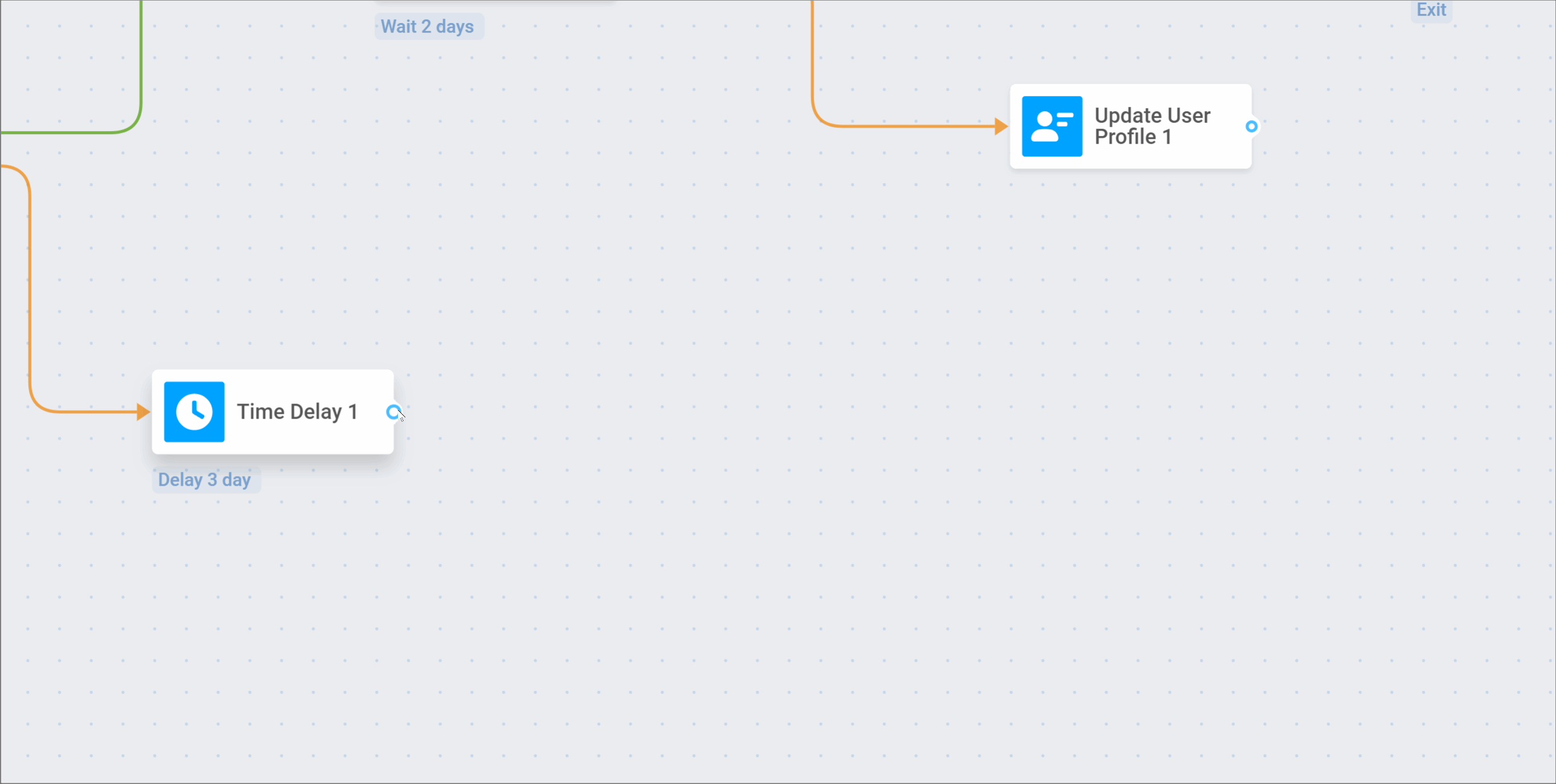

If a user ignores the push notification, we will wait for three days before sending anything else. To do this, we will add the Time Delay element:

7. Email

After the specified time, we will send an email with a selection of discounted clothes.

First, we will configure the Email platform and create the email using the Pushwoosh Email Templates Editor.

Then, we will add the Email element to our Journey and select the template we created. We will split the flow and wait for the email to be opened for three days:

Personalization is essential for e-commerce. If you segment customers based on their preferences and previous purchases, you can send relevant recommendations and offers for each segment. To send different messages depending on the segment, use the Segment Split element in Journey.

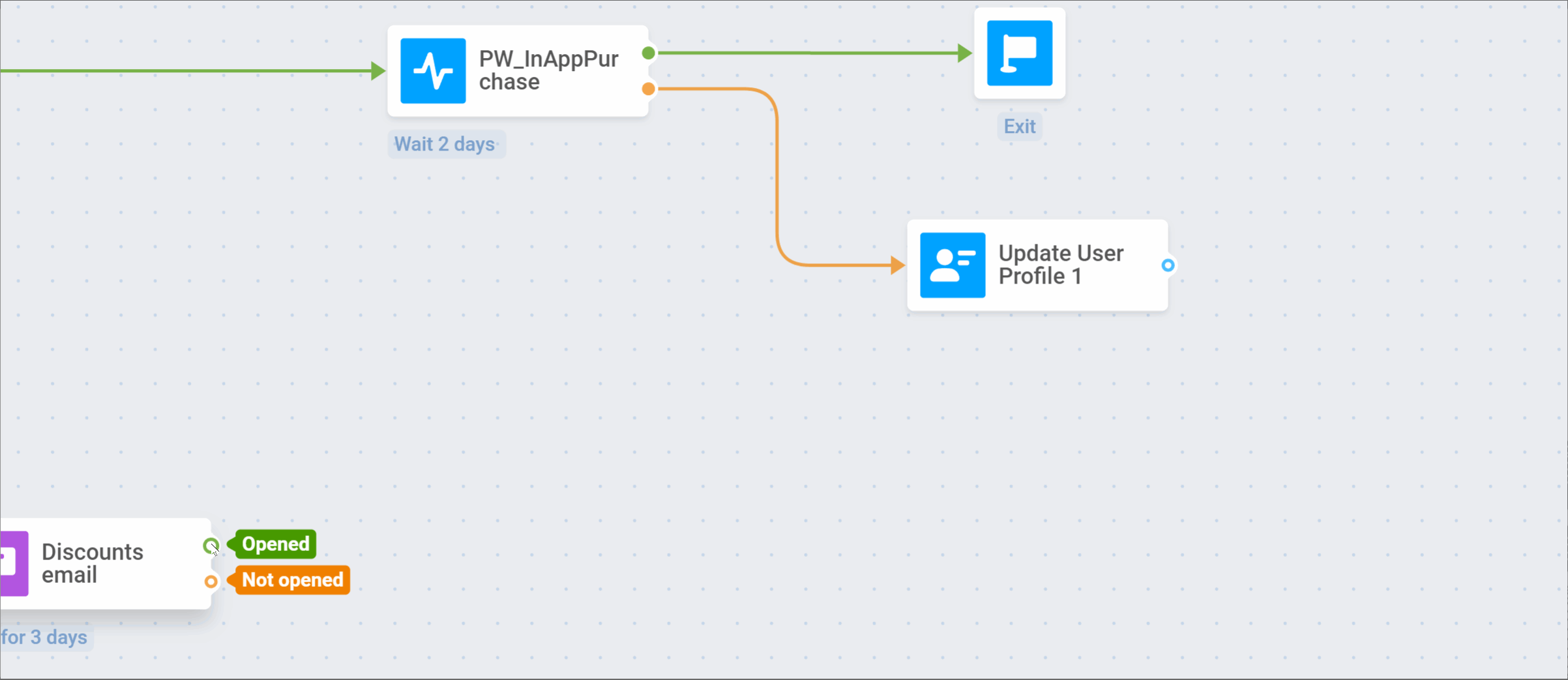

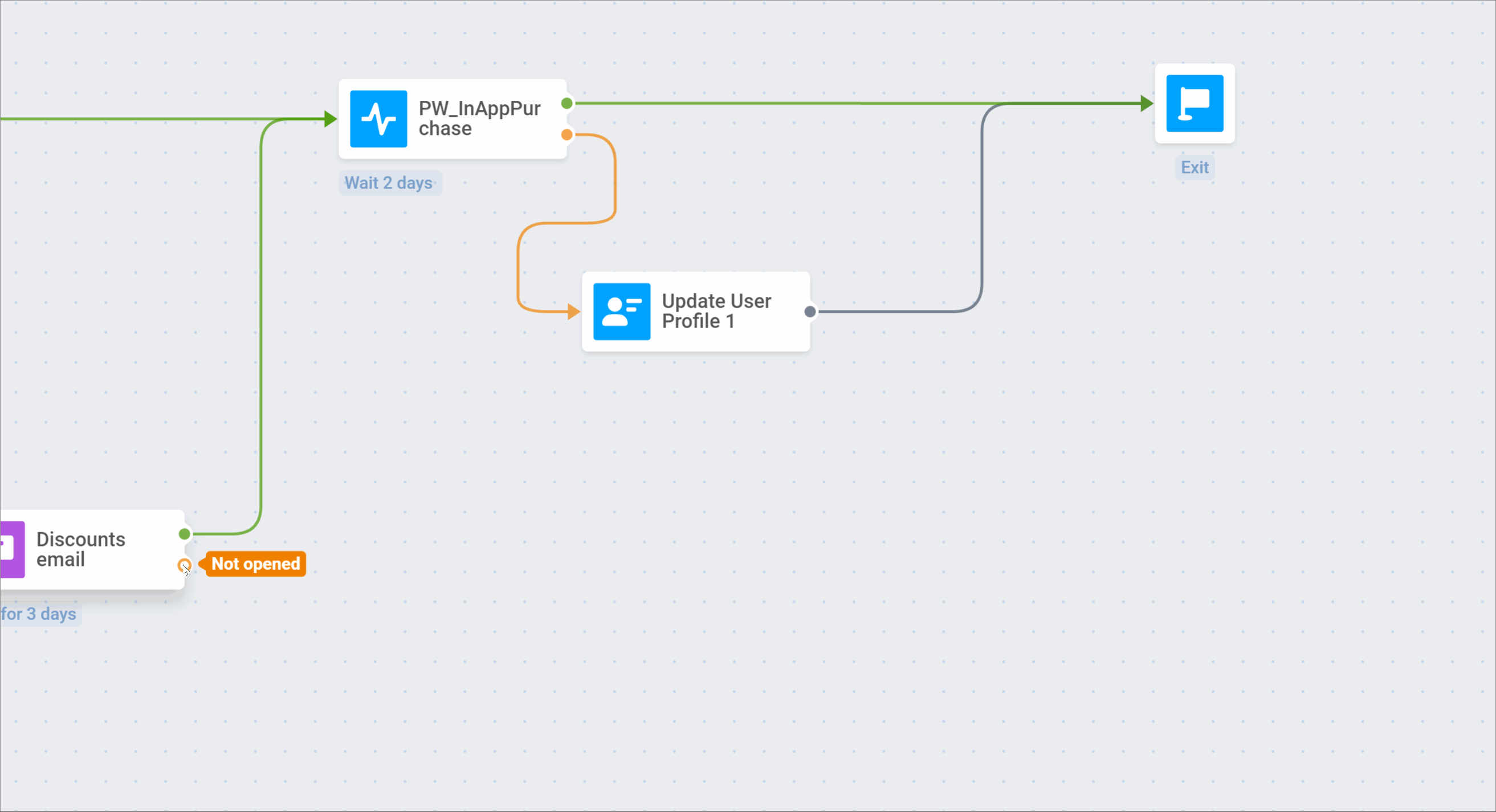

If a customer opens the email, we will wait for a new purchase within two days, and then the Journey will continue as described in steps 4 and 5:

8. Tagging users who have not opened the email

If a user has not opened the email within three days, we will update their profile to assign them the Retention drop-off Tag with the Not interested in offers value. Using this Tag, we will be able to make a segment of customers who are not interested in any offer within our retention campaign or are not ready to buy clothes at the moment. We can launch another retention campaign for such customers in the future.

We created the Retention drop-off Tag beforehand and selected the string data type.
