Customizing iOS SDK

Integration

• Deep linking
• In-app purchase tracking
• Creating a Rich Media queue
• Autoplay a video sent in a Rich Notification with force touch
• Custom push sound
• iOS Provisional Push

Deep linking

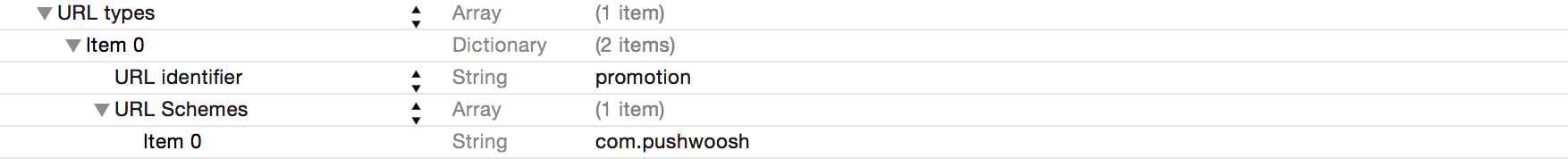

In your Info.plist file add URL types array with URL Identifier and URL Scheme.
In the example below the URL Scheme is com.pushwoosh and the URL Identifier is promotion.

In your App Delegate file (usually AppDelegate.m) add openURL delegate function as outlined in the example below. The example checks for the correct page, parses “id” value from the URL and opens PromoPageViewController in response.

Swift

func open(_ url: URL, options: [String : Any] = [:], completionHandler completion: ((Bool) -> Swift.Void)? = nil) {
        let components = URLComponents(url: url, resolvingAgainstBaseURL: false)
        let page = components?.host
        var promotionId: String?

        if page == "promotion" {
            return
        }

        let items = components?.queryItems ?? []

        for item in items {
            if item.name == "id" {
                promotionId = item.value
            }
        }

        //show PromoPageViewController
    }

Objective-C

- (BOOL)application:(UIApplication *)application openURL:(NSURL *)url sourceApplication:(NSString *)sourceApplication annotation:(id)annotation {
    NSURLComponents *components = [NSURLComponents componentsWithURL:url resolvingAgainstBaseURL:NO];
    NSString *page = components.host;
    NSString *promotionId = nil;

    //return if this is not a promotion deep link
    if(![page isEqualToString:@"promotion"])
        return NO;

    for(NSURLQueryItem *item in components.queryItems)
    {
        if([item.name isEqualToString:@"id"])
            promotionId = item.value;
    }

    PromoPageViewController *vc = [[PromoPageViewController alloc] init];
    vc.promotionId = promotionId
    [self presentViewController:vc animated:YES completion:nil];
}

In-app purchase tracking

By default, tracking of in-app purchases is disabled. If you want to track in-app purchases when configuring Customer Journeys, set the Pushwoosh_PURCHASE_TRACKING_ENABLED flag to true in the info.plist file. You can find a list of available flags in the table.

If you want to track in-app purchases manually, you can use the code below.

In paymentQueue:updatedTransactions: delegate method call sendSKPaymentTransactions method of PushManager

Swift

 func paymentQueue(_ queue: SKPaymentQueue, updatedTransactions transactions: [SKPaymentTransaction]) {
     // In-Apps Tracking Pushwoosh code here
     Pushwoosh.sharedInstance().sendSKPaymentTransactions(transactions)
     // the rest of the code, consume transactions, etc
 }

Objective-C

- (void)paymentQueue:(SKPaymentQueue *)queue updatedTransactions:(NSArray *)transactions {

  [[PushNotificationManager pushManager] sendSKPaymentTransactions:transactions];

  //the rest of the code, consume transactions, etc
}

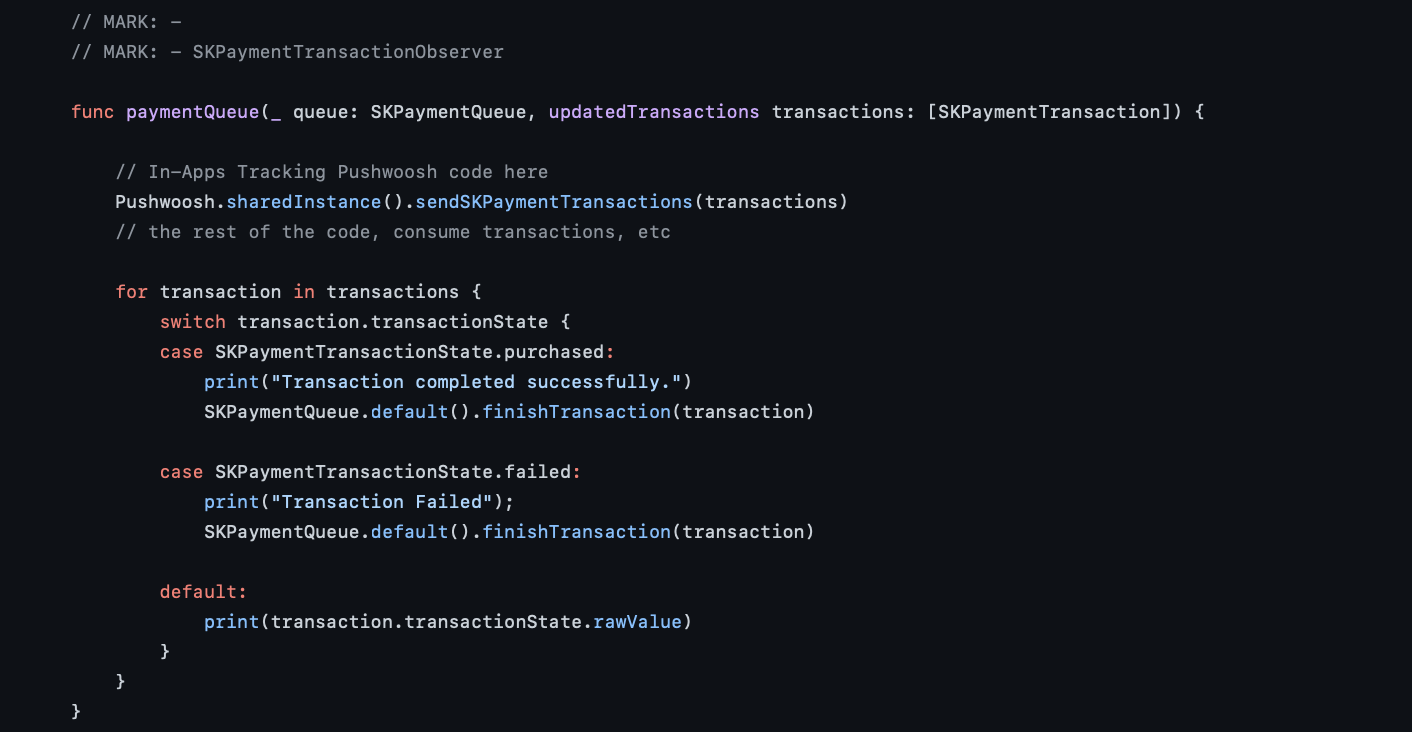

Example

Creating a Rich Media queue

In case there are several Rich Media pages to display simultaneously (for example, trigger events for two or more In-Apps take place at one moment, or a Rich Media page is being displayed already at the moment a different trigger event occurs), you can set up a queue for Rich Media pages displaying. To create a queue, follow the steps described below.

1. Create a class that implements PWRichMediaPresentingDelegate:

@interface ChainedRichMediaPresentingDelegate () <PWRichMediaPresentingDelegate>

@property (nonatomic) NSMutableArray *queue;

@property (nonatomic) BOOL inAppIsPresenting;

@end


@implementation ChainedRichMediaPresentingDelegate

- (instancetype)init {
    self = [super init];

    if (self) {
        _queue = [NSMutableArray new];
    }

    return self;
}

- (BOOL)richMediaManager:(PWRichMediaManager *)richMediaManager shouldPresentRichMedia:(PWRichMedia *)richMedia {
    [_queue addObject:richMedia];
    return !_inAppIsPresenting;
}

- (void)richMediaManager:(PWRichMediaManager *)richMediaManager didPresentRichMedia:(PWRichMedia *)richMedia {
    _inAppIsPresenting = YES;
}

- (void)richMediaManager:(PWRichMediaManager *)richMediaManager didCloseRichMedia:(PWRichMedia *)richMedia {
    _inAppIsPresenting = NO;

    [_queue removeObject:richMedia];

    if (_queue.count) {
        [[PWRichMediaManager sharedManager] presentRichMedia:_queue.firstObject];
    }
}

- (void)richMediaManager:(PWRichMediaManager *)richMediaManager presentingDidFailForRichMedia:(PWRichMedia *)richMedia withError:(NSError *)error {
    [self richMediaManager:richMediaManager didCloseRichMedia:richMedia];
}

@end

2. Set the delegate:

 [PWRichMediaManager sharedManager].delegate = [ChainedRichMediaPresentingDelegate new];

Swift (GitHub)

Example

Objective-C (GitHub)

Example

Autoplay a video sent in a Rich Notification with force touch

To make a video sent as a Rich Notification attachment autoplay when the notification is expanded without any user interaction, follow the steps below:

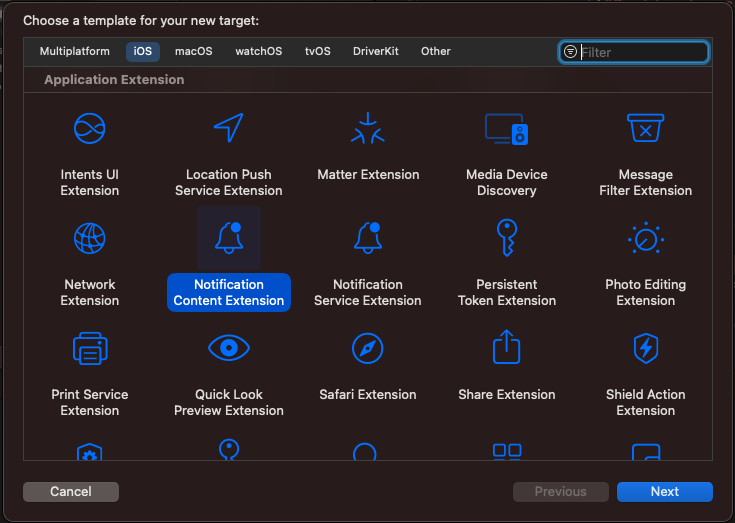

1. Add the Notification Content Extension to your project:

• In Xcode, select File > New > Target.
• Choose Notification Content Extension.
• Assign it a name and complete the setup.

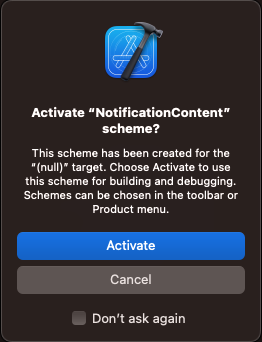

If prompted with the “Activate scheme” message, choose Cancel.

2. Adjust the properties and methods in the Content Extension as follows:

import UIKit
import UserNotifications
import UserNotificationsUI
import AVKit


class NotificationViewController: UIViewController, UNNotificationContentExtension {
    var playerController: AVPlayerViewController!
    @IBOutlet weak var playerBackgroundView: UIView!

    override func viewDidLoad() {
        super.viewDidLoad()
        // Do any required interface initialization here.
    }

    func didReceive(_ notification: UNNotification) {
        let attachment = notification.request.content.attachments.first

        playerController = AVPlayerViewController()
        // Set height programmatically
        // preferredContentSize.height = 250

        if let url = attachment?.url {
            setupVideoPlayer(url: url)
        } else {
            print("No valid URL...")
        }
    }

    private func setupVideoPlayer(url: URL) {
        guard let playerController = self.playerController else { return }
        let player = AVPlayer(url: url)
        playerController.player = player
        playerController.view.frame = self.playerBackgroundView.bounds
        playerBackgroundView.addSubview(playerController.view)
        addChild(playerController)
        playerController.didMove(toParent: self)
        player.play()
    }

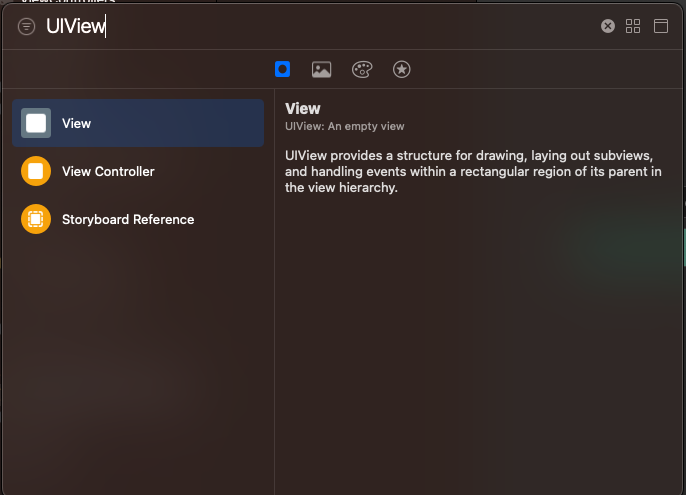

3. Incorporate a UIView into MainInterface.storyboard:

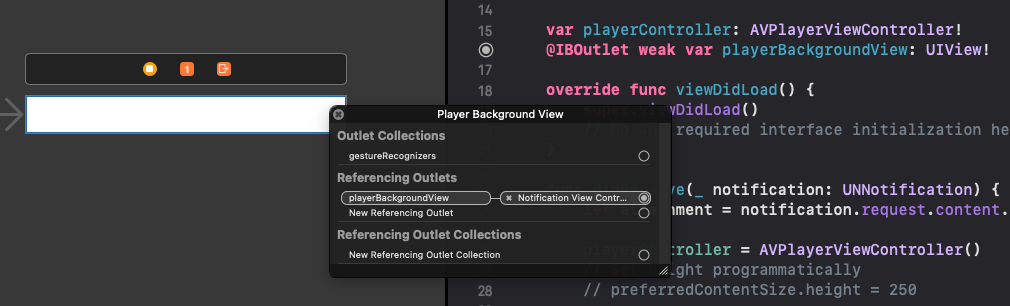

4. Link the playerBackgroundView IBOutlet with the UIView you just added:

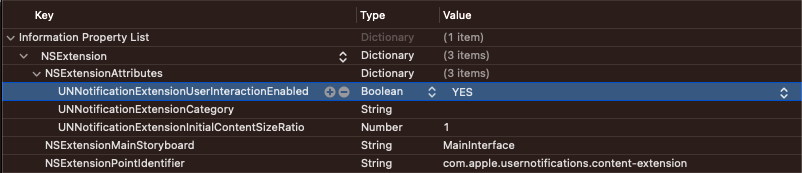

5. Update the info.plist file with the following entry:

UNNotificationExtensionUserInteractionEnabled = true

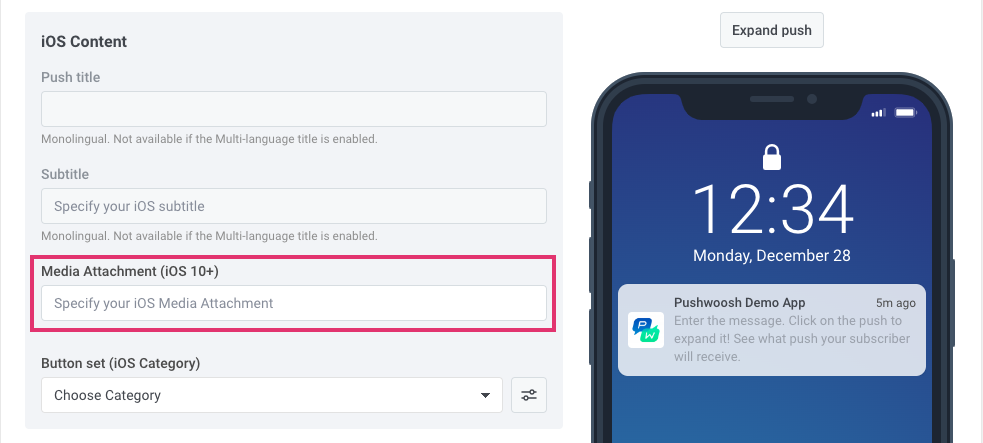

In order to attach a video to your notification, input a video’s URL to the Media Attachment field in the Control Panel:

When sending a notification via API /createMessage request, include the URL in the “ios_attachment” parameter and ensure the “mutable-content” flag is set to `1`.

Note

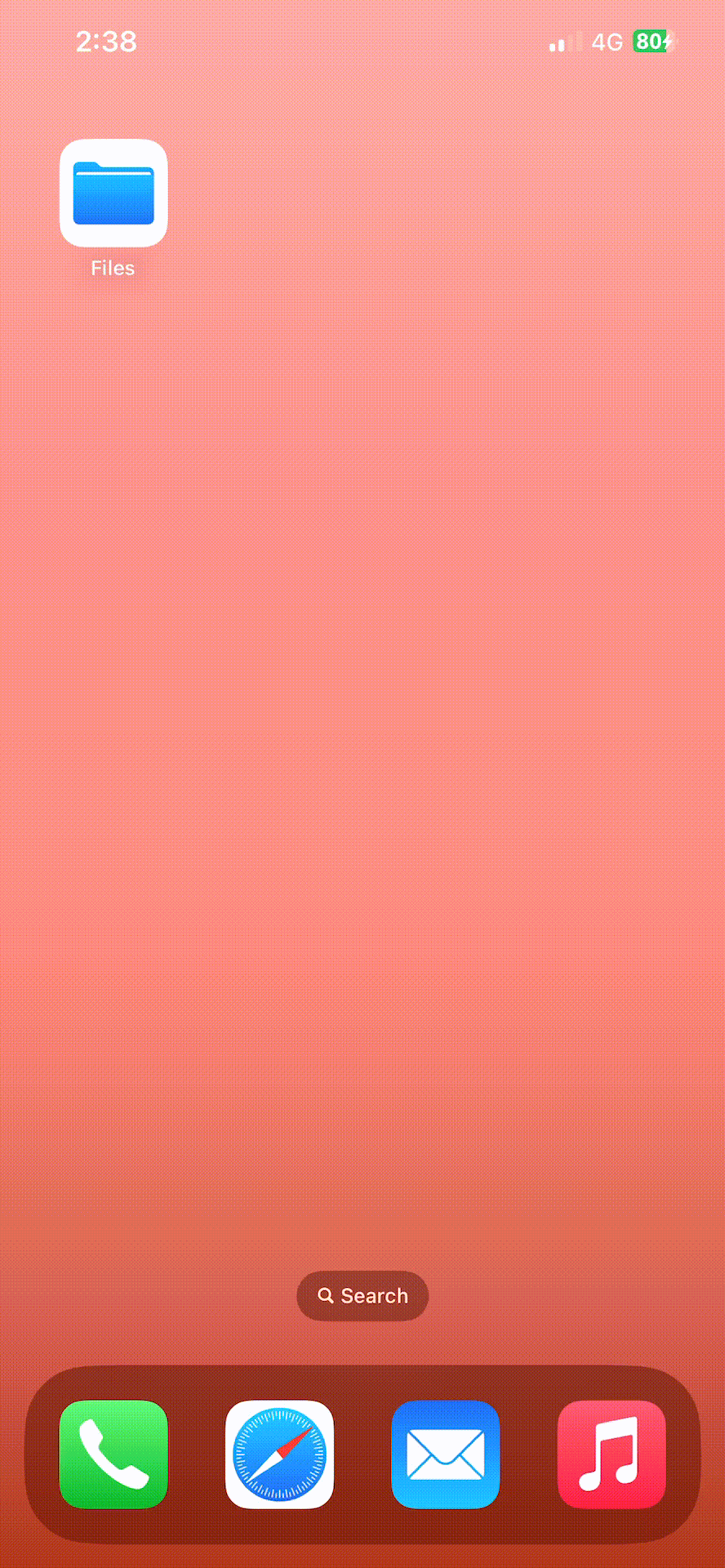

To test the autoplay feature, you can use the following sample video: Hello World Sample Video.

Custom push sound

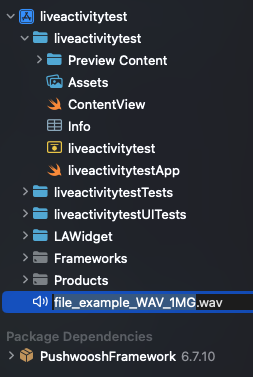

To play a custom sound when on a push notification receiving, first put the audio file into your project’s root folder.

Then, specify the sound file’s name in push parameters – fill in the Sound field of the iOS-specific settings of your message or specify the file name as a value for the “ios_sound” param of the createMessage API request.

Audio file for custom iOS sound has to be in one of the following formats: .aif, .caf, .wav. Make sure to specify the format in the file’s name; otherwise, it will be ignored by Pushwoosh iOS SDK.

Tip

Consider App Store limitations on bundle size when adding the sound file to your bundle.

iOS Provisional Push

Note

Supported on iOS 12 and later.

How it works

Provisional push notifications appear silently in the user’s Notification Center but not on the lock screen. This type of pushes doesn’t need to be allowed by a user explicitly: you can start sending them as soon as a user installs and launches your app.

However, users still can subscribe to your prominent push notifications: when opening the Provisional Push, they have two options to choose their experience – to keep pushes in Notification Center without alerts and sounds or allow you to send pushes prominently so that they appear on the lock screen.

Provisional Pushes are designed to let users make informed decisions about whether they’d like to receive notifications from your app. As the APN native subscription request is shown to users only once and to subscribe later, they should go to their phone’s system settings, and some users might not subscribe since they aren’t aware of what value they get with your pushes. Provisional Pushes give users this understanding: they can see what content you deliver in push notifications and decide whether they need to be notified about this content prominently.

Important

Please note that Provisional Pushes, when implemented, replace the native APN prompt, which means users cannot subscribe to prominent notifications until they open their Notification Center and choose to receive Provisional Pushes as prominent ones.

How to implement

1. Integrate the Pushwoosh iOS SDK by following the guide.

2. Add the following string to your project’s AppDelegate before calling the registerForPushNotifications() method:

Swift

if #available(iOS 12.0, *) {
    Pushwoosh.sharedInstance().additionalAuthorizationOptions = UNAuthorizationOptions.provisional
}

Example

Objective-C

if (@available(iOS 12.0, *)) {
  [Pushwoosh sharedInstance].additionalAuthorizationOptions = UNAuthorizationOptionProvisional;
}

Example

That’s it! App users will receive messages directly to their Notification Center once they install the app.
